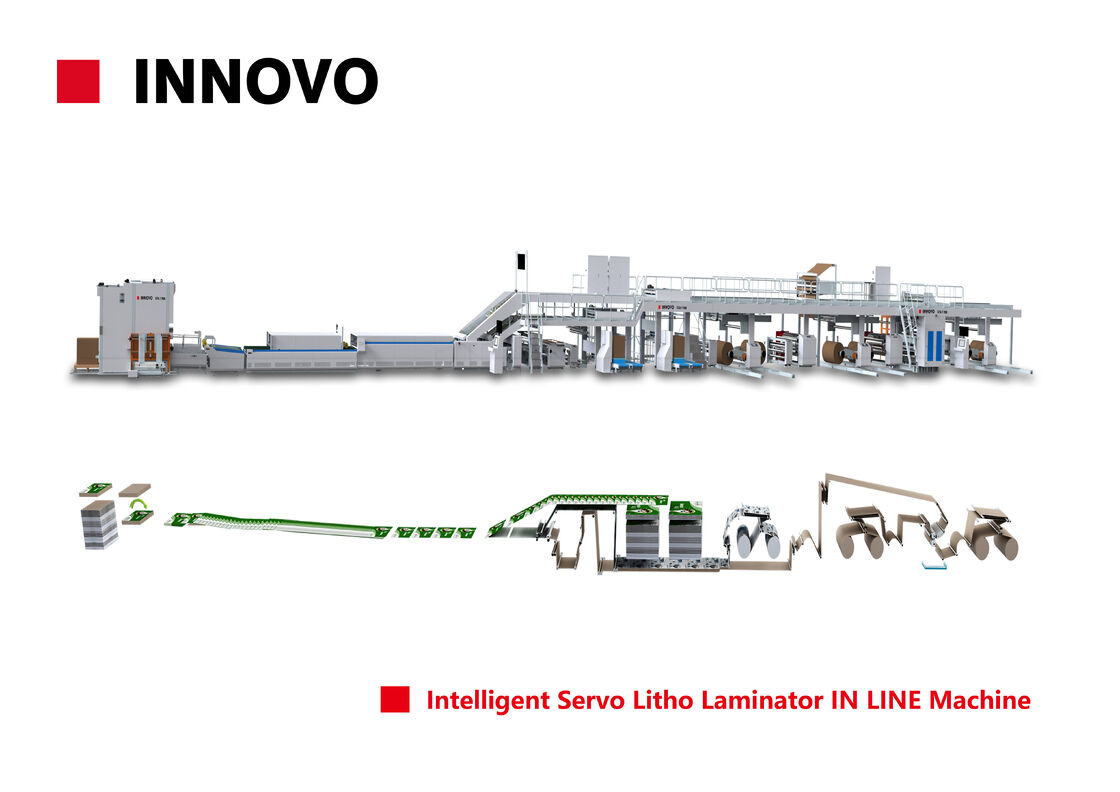

GSL1700 Inline Reel to sheet Litho Laminator

Performance characteristics

Performance Features

· It adopts dual feeder paper feeding to achieve rapid order change.Taking into account both offset printing and pre-printing, offset printing does not need to change equipment, and pre-printing can significantly reduce costs

·Cassette type single facer, quickly change of corrugating rollers

·Video monitoring of the main operation position improves efficiency, increases production and reduces losses.High-speed splicing machine, splicing paper without slowing down speed. Zero paper tails, less waste.Non-stop for top paper feeding, without downtime for stacking

·Corrugated paper humidification system, leveling the cardboard, adjusting the humidity.

·Automatic trimming machine for corrugated, and the waste is automatically discharged.

·Servo synchronous cross-cutting machine, color mark detection, precise positioning and length.

·Servo high-speed laminating machine, automatic synchronization of bottom and top paper.

·High speed flip flop stacking machine which can stack the product on both sides.

·Equip with a remote diagnostic system for easy machine maintenance

Parameters

·Maximum sheet size:1650*1650mm

·Minimum sheet size:500*500mm

·Maximum line speed:150m/min

·Maximum sheet speed:12000P/h

·accuracy:+1mm (front guide), +0.5mm (side guide)

·Maximum stacker speed:12000P/h (E flute) 10000P/h (B flute )

·Maximum paper pile height:1700mm (With tray)

·Machine floor dimensions :68X5.5X3m
