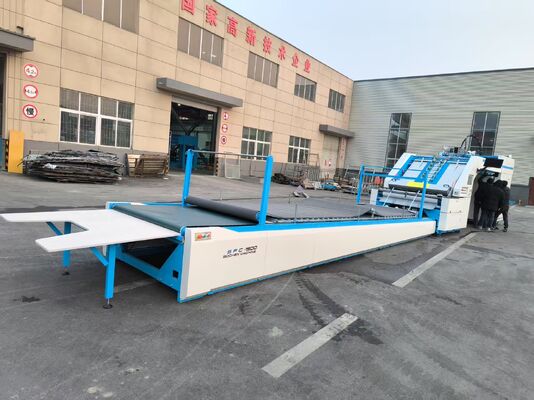

Automatic Servo High Speed Flute Laminator Laminating Machine For Corrugated Cardboard Packaging 200m/Min

BRANCH INTRODUCTION:

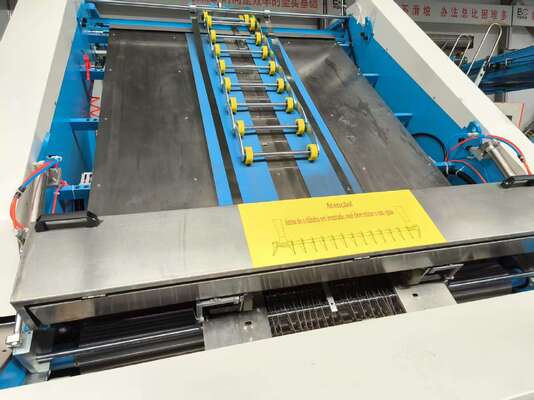

1. BOTTOM PAPER FEEDING

Use big suction belt system. Japan Nitta brand belt. It can work with both cardboard and corrugated board.. The wide rubber wheels ensure that the E, F, and G corrugated does not deform. It can also run more than 300gsm of cardboard or gray board. Lead edge system is option.

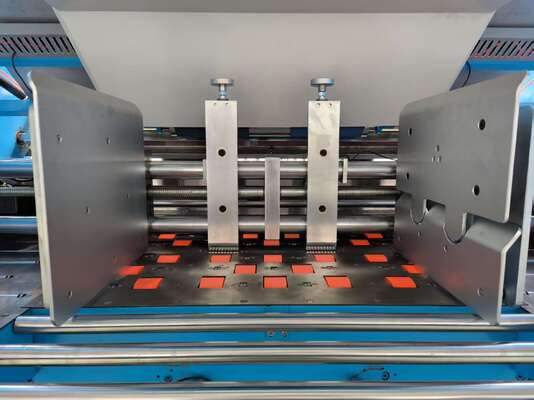

2. TOP SHEET FEEDING MECHANISM

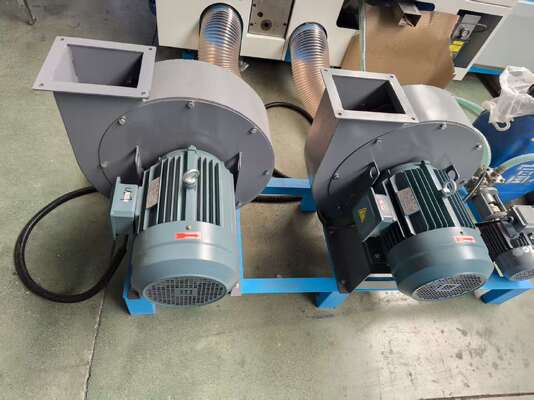

Equipped with high speed shaftless feeder, speed can meet 200meters/minute. Together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Feeding mode can choose overlap sheet or separation sheet type. Adopts top sheet aligner system to ensure high accuracy.



3. ELECTRICAL SYSTEM

Mainly using Germanuy electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

1. The machine is equipped with 10 servo motors, achieving full servo control.
2. The Germany PLC in Germany ensures stability and durability.

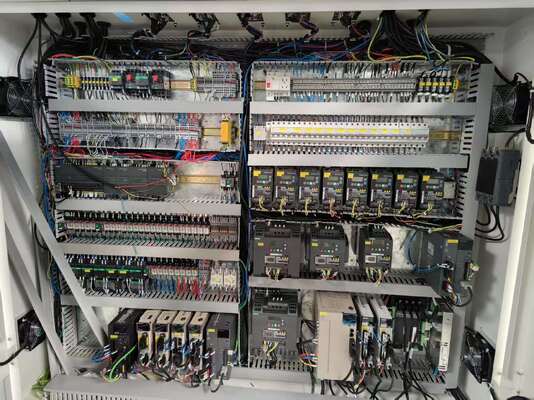

3. All the electrical appliances are placed in one control cabinet, which makes maintenance easier.

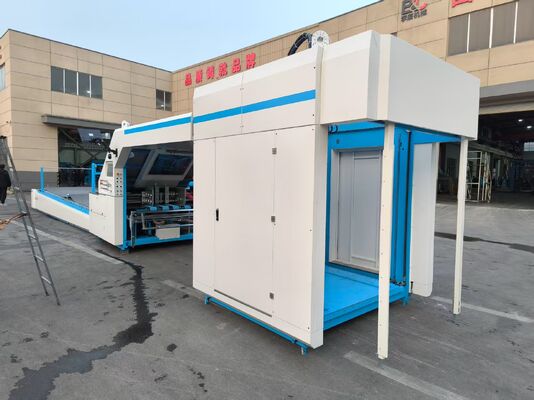

4. PRE-STACKER PART

1. Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned.
2. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform.
3. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
4. The second floor platform can move left and right automatically.

5. POSITIONING SYSTEM & GLUE ROLLER

Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue. Also with two new polyfluoroethylene material pressing rollers(150mm diameter), need not cleaning to reduce the labor strength of the operator.


6. AUTOMATIC LUBRICATION AND VIDEO MONITORING

Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
Using four high-definition cameras, the machine's operating status is constantly monitored.



Order memory function. Machine can storage previous order record. When you want to do previous work. Just arouse previous order, the machine will adjust to this order data automatically.

Double sheets detection system can detect top paper during running to avoid double sheets feeding at the same time.
