Sheet To Sheet Laminating Machine with Servo Control for Laminating 5Ply Corrugated Paper and Multiple Laminating Types

• Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
• Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
• Automatic paper detection with servo correction technology for precise top-bottom paper alignment
• Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
• Multifunctional rack accommodates curved corrugated materials
• 160mm stainless steel glue roller with fine anilox grinding for even coating
• Dual-use lifting platform with pre-stacker structure
• Polyethylene-coated rollers for automatic glue release
• Circulating glue system reduces waste and stabilizes adhesion
• One-touch machine adjustment via paper size input
• Integrated video monitoring system

• Advanced transmission control system with automatic paper size adjustment
• Computerized high-speed fitting (up to 12,000 pieces/hour)
• Chuanliu-type air supply head with multiple nozzle sets
• Feida Block system for low stack cardboard handling
• Multiple electric eyes for precise paper alignment
• Full-function electronic control with HMI and PLC monitoring
• Automatic glue replenishment with recycling system

Details display

1. Touch screen control

Just set in touch screen, size will be adjusted automatically.


With side gauge system. Make the lamination precision more high. And with Yaskawa two servos to keep the high lamination precision.

4. Electric configuration.

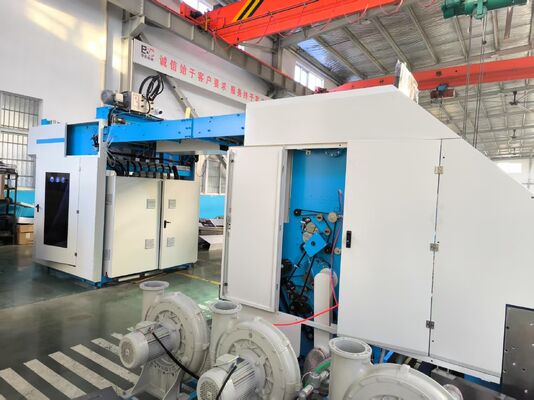

Mainly using exported electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

1. The machine is equipped with 13 servo motors, achieving full servo control.
2. The exported PLC in Germany ensures stability and durability.
3. All the electrical appliances are placed in one control cabinet, which makes maintenance easier.

1. Using four high-definition cameras, the machine's operating status is constantly monitored.
2. The pressing rollers are made of special materials to prevent the risky operation of manual scrubbing. The diameter of the pressing roller drum is 150mm.
3. A remote control handle is set beside the roller.

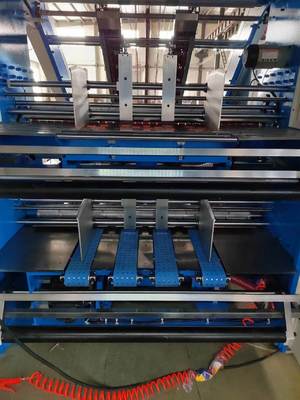

6,Shaftless feeder. It can feed the paper more steady.

1. Equipped with high speed servo feeder, The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin
   paper can be delivered rapidly and smoothly.

2. Becker vacuum pump.
3. Equipped with a double-sheet detection system.

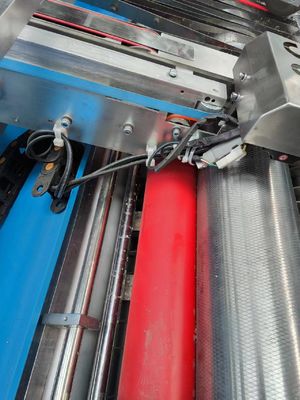

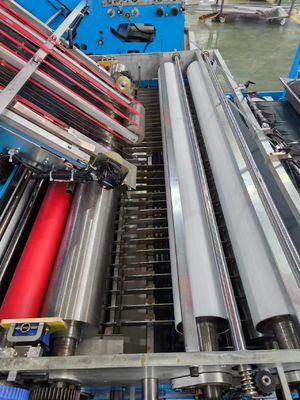

7,Stainless steel anilox glue roller(Evenly glue)

1. Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy.
2. The design of large stainless steel anilox roller (160mm diameter) is stable and high-efficiency, coat evenly and save glue volume.
3. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
4. The unique adhesive retention device enables the circulation of the glue or allows it to be completely closed without circulation. Different types of glue can be used, and the selection options are more extensive.

8,Pre-stacking system.

1. Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned.
2. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform.
3. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
4. The second floor platform can move left and right automatically.

1. Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
2. High-flow fans can be more easily controlled for corrugated materials that have undergone deformation.

10.Roller pressure adjust by servo and Thickness measure system

1. The system adopts a separate control system for the gluing motor and the main motor. When the main motor stops, the glue roller motor runs at a low speed, which not only saves electricity but also prevents glue overflow.
2. Equipped with an all-intelligent adjustment system, it can intelligently adjust the paper size. Implement the quick order-switching operation
3. Automatic thickness detection system for cover pages of paper,There is no need for manual measurement of the thickness.

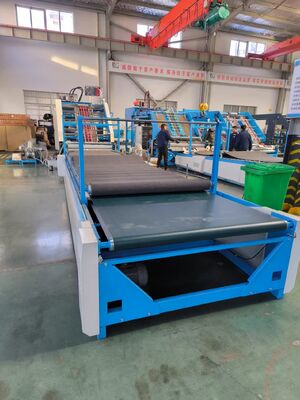

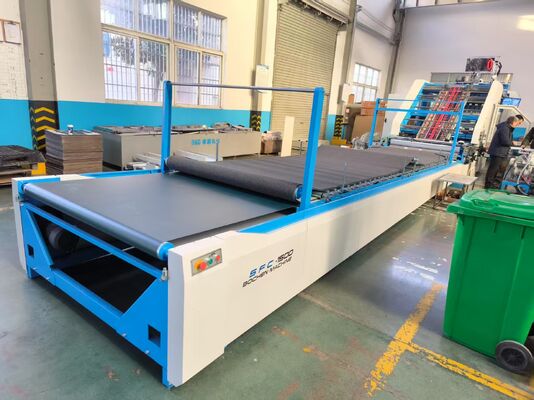

11. Pressing conveyor system.

8 meters long pressing conveyor, make the finished products drying more fast and keep the products good quality. And bottom side with movable roller, easy to move. It is more convenient to operate.
