Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control

Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control
Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control
Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control

Large Image :  Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control

Product Details:
Contact Now

Automatic 5ply High Speed Servo Flute Laminating Machine with 160 meters/minute Speed and Servo Motor Control

Description
Max Speed: 160m/min Front Precision: ±1-2.5mm
Side Precision: ±1.5-3.5mm Machine Power: 32KW-40KW
Bottom Paper Thickness: ≤10mm(A-F Corrugated Board) ≥350g Cardboard Machine Weight: 12000kg-16000kg
Highlight:

5ply Flute Laminating Machine

,

160 meters/minute Servo Flute Laminator

,

Servo Motor Control High Speed Laminator

Automatic High Speed 5ply Servo Flute Laminating Machine SFH

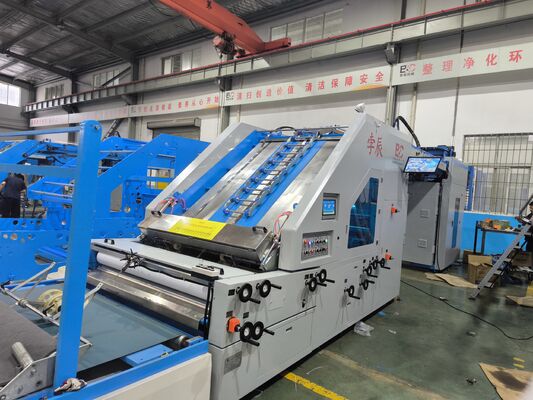

Automatic high speed 5ply servo flute laminating machine is a new generation of high-speed laminating machine developed by our company. It can laminate three sheets of cardboard at once, and can produce three-layer, four-layer, five-layer, seven-layer, and nine-layer boards to increase material strength and thickness. The bottom paper adopts a lead edge feeding structure for stable paper feeding, and the servo tracking and correction principle of the top paper. Can achieve a maximum laminating speed of 160 meters/minute. High speed, efficiency, and precision make it your ideal choice.
Performance Characteristics
  • This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two-layer board (cardboard + cardboard), 3ply, 4ply, 5ply, 7ply and other products.
  • Total 12-13 servos. Keep the machine steady and run with high speed.
  • Laminating types: cardboard+cardboard+cardboard, cardboard+cardboard+corrugated board, cardboard+corrugated board+corrugated board, cardboard+corrugated board+cardboard.
  • Top paper feeding system uses new open type with motion correction, similar to Bobst, more steady. Bottom paper feeding structure adopts a lead edge feeding, an extended and widened belt with large suction to ensure stable bottom paper and cardboard feeding without damaging the cardboard. Also can choose double lead edge feeding system.
  • The host adopts a large roller (160mm) design for stable operation and high efficiency. The stainless steel mesh roller of the large roller (160mm) is evenly coated with glue, saving glue amount, and does not throw glue.
  • The surface of the laminating roller and pressing roller is made of special polyethylene material, and the glue automatically falls off and is free from wiping.
  • Adopting a dual servo top paper correction structure, the top paper and bottom paper (cardboard) are automatically detected and servo corrected, ensuring high precision in tracking and adhering to the front gauge of the top paper and bottom paper (cardboard). The front gauge can be adjusted independently according to product needs.
  • There are two types of paper feeding structures for the top paper lifting platform, pre-stacking paper structure and non pre-stacking paper lifting platform.
  • The bottom paper pressurization device improves the stability of paper feeding for warped paperboard, and the multifunctional paper tray in the bottom paper stacking section is suitable for warped paperboard.
  • The main engine bearings are automatically lubricated at regular intervals, ensuring smooth operation and extending the lifespan of the equipment.
  • Adopting a reflux glue system to reduce glue loss and stabilize glue adhesion effect.
  • Electrical configuration: International brands such as PLC , main motor and inverter.
  • One-click adjustment of the whole machine (just enter the paper size).
  • Video monitoring.
  • Feeder paper with servo motor lifting. It is more steady and no double sheets.
Technical Parameters
MODEL SFH-1500 SFH-1700 SFH-1900 SFH-2200
Max Sheet 1500×1500mm 1700×1700mm 1900×1700mm 2200×2000mm
Min Sheet 440×400mm 400×500mm 500×500mm 500×500mm
Top Paper Thickness 120-800g 120-800g 120-800g 120-800g
Max Speed 160m/min 160m/min 160m/min 160m/min
Front Precision ±1-2.5mm ±1-2.5mm ±1-2.5mm ±1-2.5mm
Side Precision ±1.5-3.5mm ±1.5-3.5mm ±1.5-3.5mm ±1.5-3.5mm
Machine Power 32KW 35KW 38KW 40KW
Bottom Paper Thickness ≤10mm(A-F corrugated board) ≥350g cardboard ≤10mm(A-F corrugated board) ≥350g cardboard ≤10mm(A-F corrugated board) ≥350g cardboard ≤10mm(A-F corrugated board) ≥350g cardboard
Machine Dimension 18000×2300×2520mm 18200×2500×2520mm 18500×2748×2520mm 18900×2960×2520mm
Machine Weight 12000kg 13000kg 14000kg 16000kg
