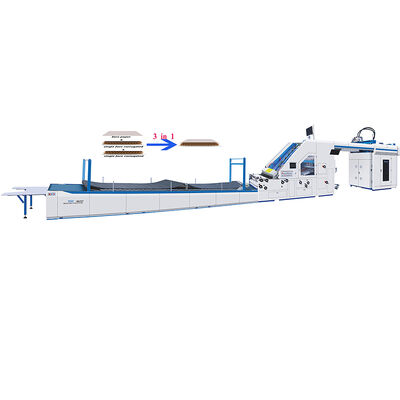

SFH1500 New Style Upgraded Three in One Servo Automatic 5 Ply Flute Laminating Machine For Corrugated Carton Box

SFH1500 New Style Upgraded Three in One Servo Automatic 5 Ply Flute Laminating Machine For Corrugated Carton Box

Performance characteristics

● This newest machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.

●SFH has upgraded the paper feeder system based on SFC, replacing the original O-shaped belt with a flat belt for paper feeding, and adding a paper alignment system for correction.

● Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.

● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

● The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and together with lead edge feeding system.

● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.

● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

● Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).

● Video monitoring.

Parameter

1.BOTTOM SHEET FEEDING

1.One bottom feeding part uses imported servo motor electric controlling system, with Japan NITTA suction belt to ensure suction power stable and smoothly.

2. Another bottom feeding part adopts lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.

3.A pneumatic side-pushing alignment system has been adopted for each floor. Make the base paper more neat

4.By adopting a multi-layered paper support structure, it makes the operation more convenient for extremely large or extremely small papers.

2. TOP SHEET FEEDING MECHANISM



1. Equipped with high speed  servo feeder,  The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin
paper can be delivered rapidly and smoothly.

2. and together with Becker vacuum pump.

3. Equipped with a double-sheet detection system.

3. ELECTRICAL SYSTEM

Mainly using Germany electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

1. The machine is equipped with 13 servo motors, achieving full servo control.

2. The Siemens PLC in Germany ensures stability and durability.

3. All the electrical appliances are placed in one control cabinet, which makes maintenance easier.

4. PRE-STACK PART

 1.Pre-stack pile of paper under the condition of non-stop, improve efficiency.The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned.

2. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform.

3.We can also push the stack of paper directly into the platform. And the platform can be  adjusted around the actual situation of the paper stack.

4.The second floor platform can move left and right automatically.

5. POSITIONING SYSTEM & GLUE ROLLER

1. Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy.

2. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

3. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

4. The unique adhesive retention device enables the circulation of the glue or allows it to be completely closed without circulation. Different types of glue can be used, and the selection options are more extensive.

6. AUTOMATIC LUBRICATION SYSTEM AND HIGH FLOW FAN

1. Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.

2.High-flow fans can be more easily controlled for corrugated materials that have undergone deformation.
7 cameras video monitoring control and Self-cleaning rollers

1.Using four high-definition cameras, the machine's operating status is constantly monitored.

2. The pressing rollers are made of special materials to prevent the risky operation of manual scrubbing.

3. The diameter of the pressing roller drum is 150mm.

4. A remote control handle is set beside the roller.

8.Control system and mechanical structure

1. The system adopts a separate control system for the gluing motor and the main motor. When the main motor stops, the glue roller motor runs at a low speed, which not only saves electricity but also prevents glue overflow.

2. Equipped with an all-intelligent adjustment system, it can intelligently adjust the paper size. Implement the quick order-switching operation

3. Automatic thickness detection system for cover pages of paper,There is no need for manual measurement of the thickness.
