Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types

Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types
Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types
Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types

Large Image :  Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: SFC-1500/1700/1900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 65000-85000USD
Packaging Details: Vacuum bag
Delivery Time: 45 Days
Supply Ability: 30 Sets per month
Contact Now

Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types

Description
Driving Type: Electrical Driving Down Paper Thickness Thickness: 400gsm-10mm Cardboard And FLUTE
Line Working Speed(m/min): 150-160 Fob Term Price: 70000-85000USD
Minimum Sheet Size: 1500: 40*45cm 1700: 45*45cm Lamination Type: Cardboard+corrugator+cardboard
Max Material Size: 1500*1500mm And 1700*1700mm Glue Roller Size: Anilox Roller 160mm Diameter
Adjustment: One Key Adjust
Highlight:

servo control sheet laminating machine

,

5ply corrugated paper laminator

,

automatic sheet to sheet laminator

Automatic Sheet To Sheet Laminating Machine Featuring Servo Control for Laminating of 5Ply Corrugated Paper and Various Laminating Types
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC-1500 SFC-1700 SFC-1900 SFC-2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 440*400mm 440×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 400gsm-10mm Corrugated board and cardboard
Max speed 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components

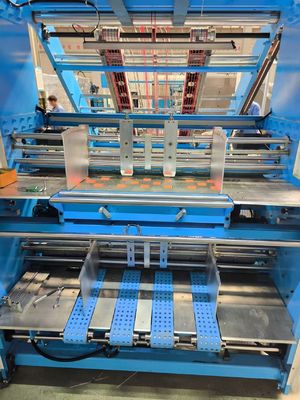

1. Bottom Paper Feeding
Bottom paper feeding system with double lead edge feeding

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

2. Top Sheet Feeding Mechanism
Top sheet feeding mechanism with adjustable components Close-up of top sheet feeding components

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
Electrical control panel with HMI interface

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

4. Pre-Stack Part
Pre-stack system with preset function

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
Main transmission components Transmission adjustment mechanism

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

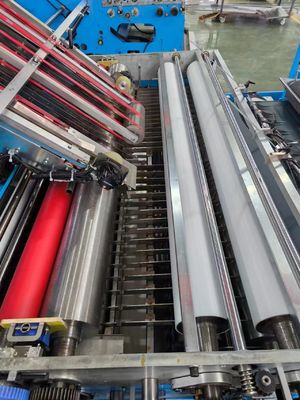

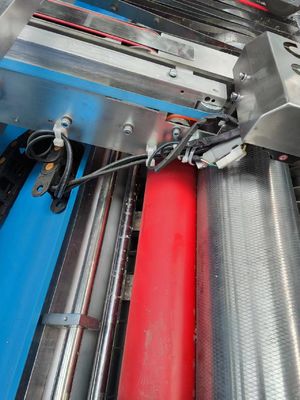

6. Positioning System & Glue Roller
Precision positioning system with photoelectric sensors

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
Touch screen control interface

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)

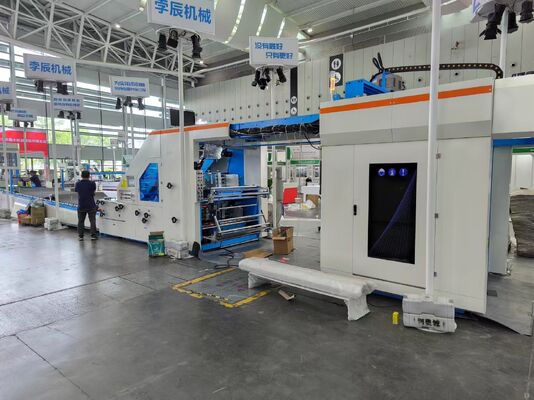

Complete 5ply sheet laminating machine overview
