Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed

Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed
Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed
Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed

Large Image :  Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: ZST-1450/1650/1900/2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 24000-40000USD
Packaging Details: Vacuum bag
Delivery Time: 15-30 Days
Supply Ability: 50 Sets per month
Contact Now

Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed

Description
Usage: Pallet Stacking For Corrugator Size Adjustion: By Touch Screen
Sell Point: High Production Stacking Speed: 12000pcs/hour
Machine Type: Pallet Stacking For Board Machine Use: Paper Stacking After Lamination
Machine Net Weigh: 4800kg Min Sheet Size: 42*45cm
Stacking Speed: 12000PCS/Hour(E Flute) Max Board Size: 1450*1450mm
Highlight:

12000pcs/hour Flip Flop Stacker Machine

,

Automatic Pallet Stacking Machine

,

High Production Auto Stacker Machine

Automatic Paper Stacking Solution for Corrugated Cardboard Production
Auto Flip Flop Stacker Machine For Flute Litho Laminator

This stacking machine is an essential accessory for flute laminating machines, designed to automate paper counting, turning, and stacking processes in corrugated cardboard production.

Machine Details

The system consists of four integrated components:

  • Slow paper table for controlled material feed
  • Stacking table for paper accumulation
  • Turning table with paper pile inversion mechanism
  • Paper receiving table with pallet system

The automated process significantly reduces labor requirements while improving delivery efficiency and reducing manual handling intensity.

Technical Specifications
Model ZST-1450 ZST-1650
Max size 1500×1500mm 1700×1700mm
Min size 420×450mm 420×450mm
Applicable paper 150-800g/m² 150-800g/m²
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12,000 pcs/hour 12,000 pcs/hour
Power 8 kW 10 kW
Key Features
  • Newly designed delivery bin eliminates paper indentation from metal contact
  • Advanced belt conveying mechanism prevents creasing from paper weight
  • Fully automated paper counting and stacking process
  • Precision paper turning mechanism for consistent results
Machine Components

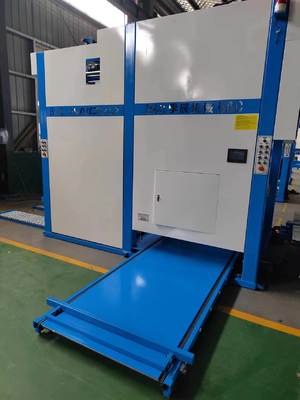

Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed 0
Optional Features

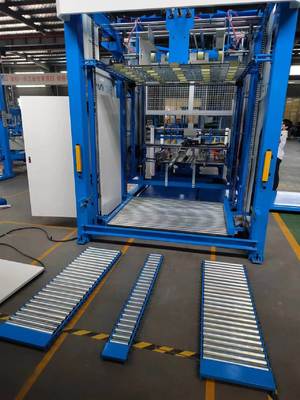

Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed 1

Semi-automatic pallet loading option available, providing labor savings and enhanced operator safety.

Machine Overview

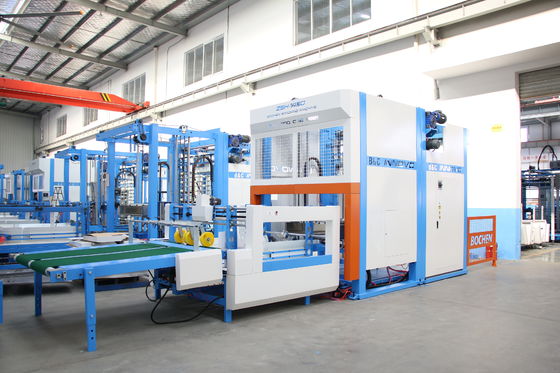

Automatic High Production Flip Flop Stacker Machine for Corrugated Cardboard Production with 12000pcs/hour Speed 2
