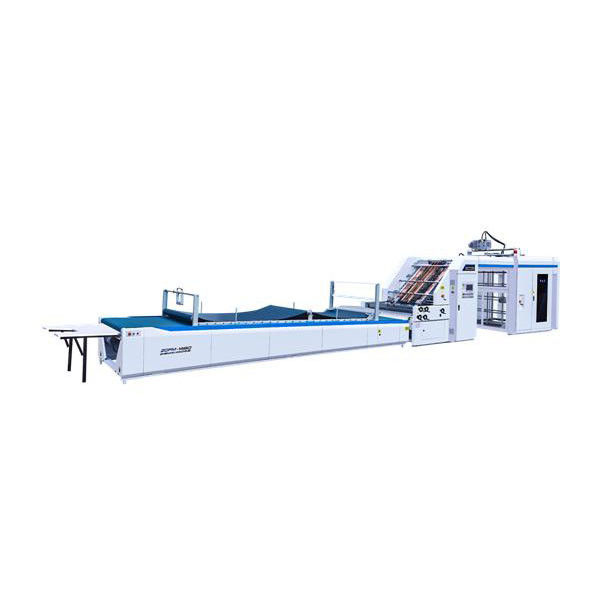

ZGFM-Pro Series Automatic High Speed Flute Laminating Machine Cardboard Laminating Machine
Performance characteristics
● Cardboard laminates with corrugated or cardboard laminates with cardboard.
● Automatic detect of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
● The bottom paper feeding part use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
● Adopt servo motor system realizes automatic adjustment of glue volume and roller pressure. When change order, it will be more fast and convenient.
● The multifunctional rack of the bottom paper are suitable for curved corrugated.
● Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity. 160mm diameter anilox roller can ensure the stability when machine at high speed.
● Two sets free-cleaning pressure roller (150mm in diameter) are not afraid to dip glue and reduce the workload.
● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
● One -click adjustment of the whole machine (just enter the paper size).
● Video monitoring (optional).
Parameters:
| Model |
ZGFM 1450 Pro |
ZGFM 1650 Pro |
ZGFM 1900 Pro |
| Max size |
1500*1500mm |
1700*1700mm |
1900*1900mm |
| Min size |
360*380mm |
360*400mm |
500*500mm |
| Top Paper |
120-800g |
120-800g |
120-800g |
| Bottom paper |
≤10mm ABCDEF corrugated board ≥300gsm cardboard |
≤10mm ABCDEF corrugated board ≥300gsm cardboard |
≤10mm ABCDEF corrugated board ≥300gsm cardboard |
| Max speed |
180m/min |
180m/min |
180m/min |
| Power |
22kw |
25kw |
27KW |
| Stick accuracy |
±1mm |
±1mm |
±1mm |
BRANCH INTRODUCTION:
1. BOTTOM SHEET FEEDING
Use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard. The air split valve of the fan is controlled by a servo motor. When controlling the air volume, it is more accurate to ensure the stability and smoothness of the sheet running.
2. TOP SHEET FEEDING MECHANISM
Equip with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
3. ELECTRICAL SYSTEM
Mainly uses Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen. Order memory function, one -click to transfer the previous order, convenient and fast.
4. TRANSMISSION SYSTEM
