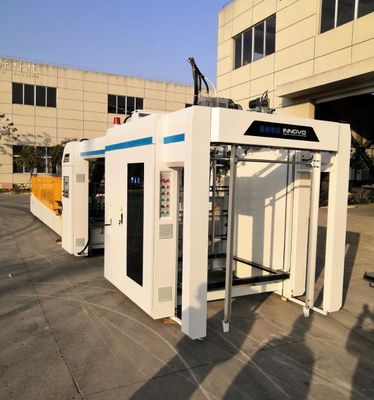

Professional Automatic Flute Laminator For High-Speed Cardboard And Corrugated Paperboard Flute Glue Lamination Machine

1.Top sheet Overlap feeding+non -stop correction, high speed without losing accuracy. Speed can reach 180meters/min.

2.Bottom sheet Lead edge feeding system and high flow suction adsorption feeding. The bottom paper enter the glue roller directly (without pressure by roller, it will not destroy the corrugated paper stiffness), ensuring the pressure resistance of corrugated paper, and reducing the amount of glue by 30%, which not only saves money, but also solves the phenomenon of excessive gum.

3.The front pressure roller is made of new polyfluoroethylene material, which is free to wash, and then reduce the labor strength of the operator.

Specifications

4. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

5. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

6. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

7. The multifunctional rack of the bottom paper are suitable for curved corrugated.

8. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

9. One -click adjustment of the whole machine (just enter the paper size).

10. Order memory function, one -click to transfer the previous order, convenient and fast.

11. Video monitoring.
