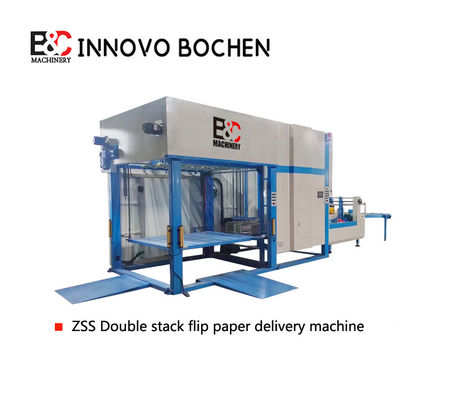

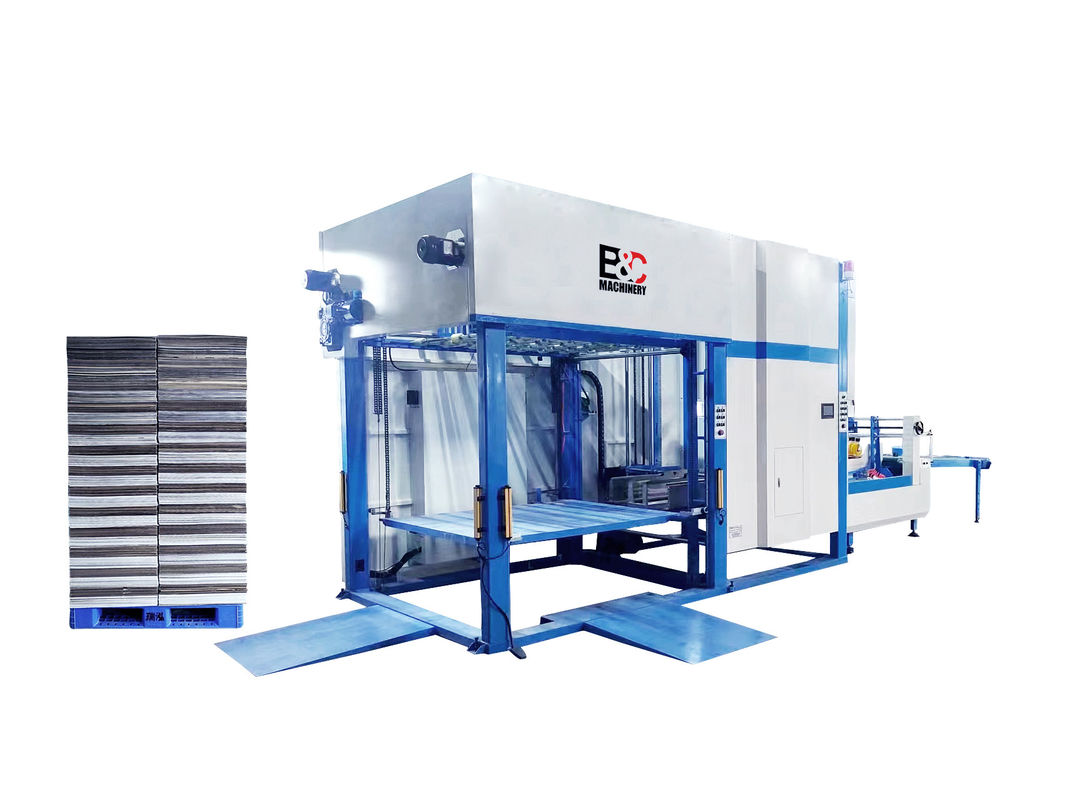

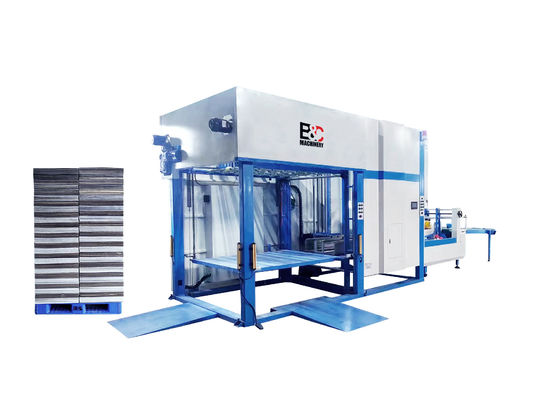

DS 14501650 Automatic Double Pile Flip Flop Stacker

DS 14501650 Automatic double pile flip flop stacker

The product is stacked in the center of pallet which is more stable. It is convenient for transfer and reduces the risk of tipping.

Intelligent double-pile stacking of single pallet to reduce space occupation.

Put the pallet manually, feed out paper stack manually.

Matching 12,000 pcs/h speed flute laminating machine.

Flip mode can be changed to prevent the paper from being curved.

None stop collection function to improve production efficiency.

Reduce labor and reduce labor intensity.

Paper can be patted neatly and stacked into pile.

Machine can match with different manufacturers' flute laminating machine.

Paper can come out from back or side.

One -click adjustment (just enter the paper size).

Video monitoring (optional).

Specification:

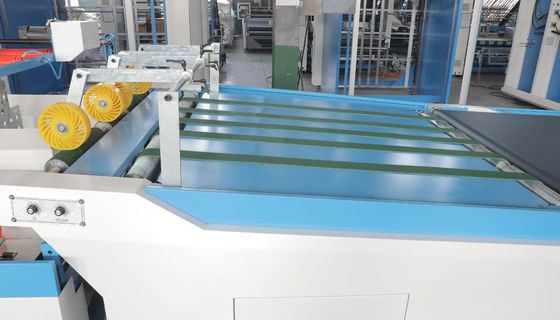

1. Separator Unit

This part has an acceleration function to quickly separate the sheets. At the same time, operators can pick out substandard products.

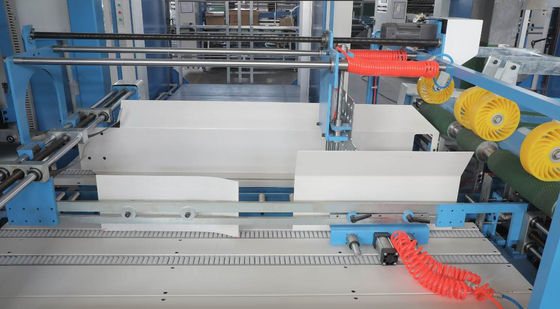

2. Count and Stacker

This part can pat the paper neatly and send it out. Paper stacker height can be adjusted by sensor position.

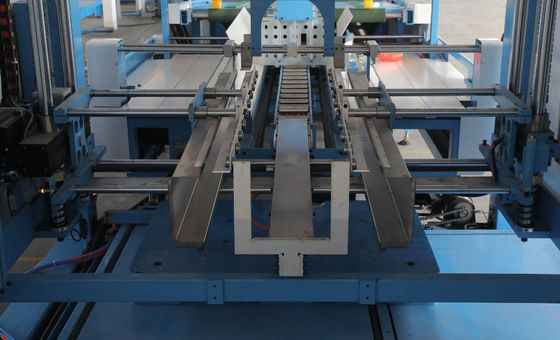

3. Turning Device

This part can send the paper to the delivery table, and the operation of this part is controlled by a servo motor. In addition, we can also adjust the flip mode in the screen.

4. Delivery Table

This part can pat the paper neatly and stack it into a paper pile. It has a non-stop delivery function.

5. Touch Screen

We can set the paper size here, the orientation will be adjusted automatically.

6. Automatic exit (OPTIONS)

This floor roller device can automatically feed out the paper stack.

7. Automatic pallet loader (OPTIONS)

This device automatically pushes the tray into the machine for easy operation.
