5 Ply Servo Automatic Flute Laminating Machine 150m/Min

Automatic 5ply Servo Flute Laminator machine at 150m/min

Performance characteristics

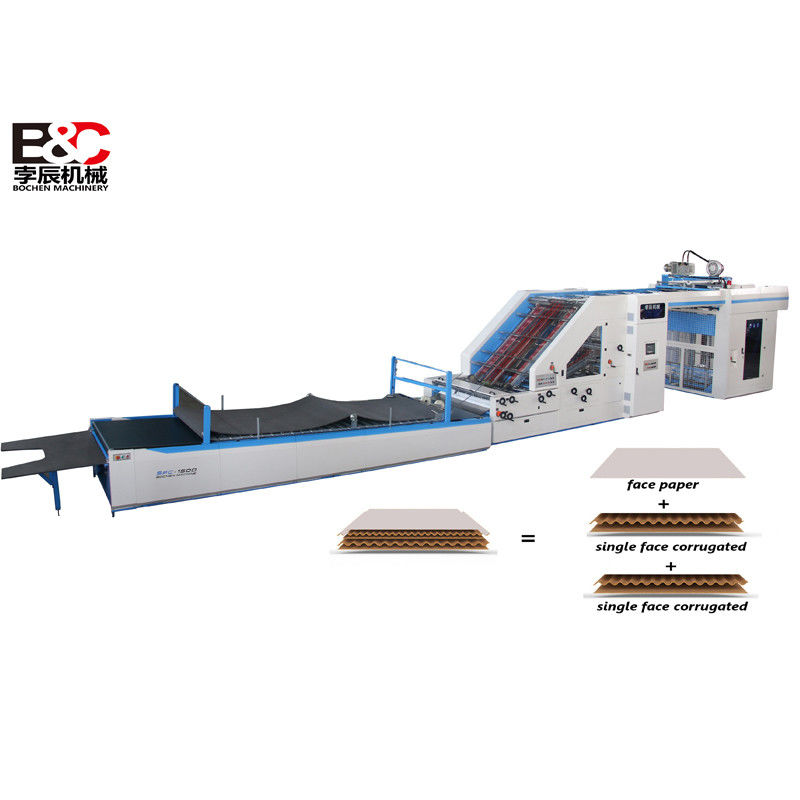

This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.

Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.

Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

The bottom paper feeding part use lead edge feeding system.

Automatic thickness measure device together with two servo motors which can adjust the rollers gap automatically.

Extended 8m conveyor pressing belt with carpet which can press smoothly and ensure the sticky much better.

The multifunctional rack of the bottom paper are suitable for curved corrugated.

Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.

The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.

Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

One -click adjustment of the whole machine (just enter the paper size).

Video monitoring.

ANHUI INNOVO BOCHEN MACHINERY MANUFACTURING CO., LTD . Our company was founded in 2012, with 30000 square meters workshop. We are a professional company that develops and produces Automatic flute laminating machine, Automatic flip flop stacker machine and Automatic pile turning machine and so on. All machines can be customized according to customers' special requirements.

SPECIFICATION:

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

Both bottom feeding part adopt lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.

2. TOP SHEET FEEDING MECHANISM

Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin
paper can be delivered rapidly and smoothly.

3. ELECTRICAL SYSTEM

Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

4. PRE-STACK PART

Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.

5. POSITIONING SYSTEM & GLUE ROLLER

Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
