Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding

Description
Feature: Overlap For Top Sheet Down Sheet Thickness: 300gsm-10mm B E F FLUTE
Paper Format Size: Max 1505*150cm Or 170*170cm Gram Weight Of Top Paper: 120-800gsm Printing Paper
Size: Customized Machine Power: 22KW
Stick Accuracy: ±1mm
High Light:

High Speed Corruaged Sheet Laminating Machine

,

Overlap Feeding Corruaged Sheet Laminating Machine



      Gfs 24000pcs/Hour High Speed Cardboard Corruaged Paper Laminating Machine Overlap Feeding


Performance characteristics:

● Lead edge feeding system. No feeding pressure structure, doesn’t damage the corrugated and enhance the pressure resistance of the corrugated.


● Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.


● Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

● The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).

● Order memory function, one -click to transfer the previous order, convenient and fast.


● Video monitoring.

Parameters:

Model GFS1500 GFS1700 GFS1900 GFS2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2100mm
Min size 360*380mm 380*400mm 450*450mm 500*500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
Max speed 180m/min 180m/min 180m/min 180m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm



Structural features:
◆ Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

◆ Computerized high-speed fitting, up to 18,000 pieces per hour.

◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

◆ Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

◆ Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

◆ Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.



BRANCH INTRODUCTION:

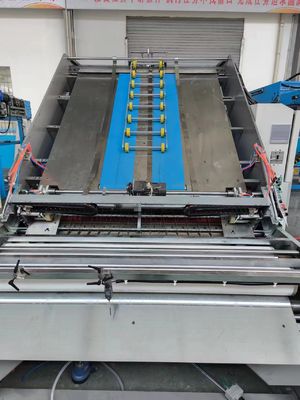

1. BOTTOM PAPER FEEDING
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 0
Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.


2. TOP SHEET FEEDING MECHANISM
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 1Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 2
Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3. ELECTRICAL SYSTEM
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 3
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.


4. PRE-STACK PART
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 4
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.


5. TRANSMISSION
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 5Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 6
Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.


6.Left-right positioning system
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 7


7. POSITIONING SYSTEM & GLUE ROLLER
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 8
The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.


8. TOUCH SCREEN OPERATION SYSTEM
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 9
It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot

9. BIG SUCTION SYSTEM FOR BOTTOM PAPER
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 10Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 11
This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.


10. AUTOMATIC LUBRICATION SYSTEM
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 12
Lubricate the bearing regularly to prolong the service life of the bearing

11. SHAFTLESS SERVO FEEDER(OPTIONAL)
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 13
This system is for option, more suitable for long size top sheets.


12. VIDEO MONITORING(OPTIONAL)
Gfs 24000pcs/Hour High Speed Corruaged Sheet Laminating Machine With Overlap Feeding 14
This option can monitor machine running, operator need not walking aroung the machine frequently.

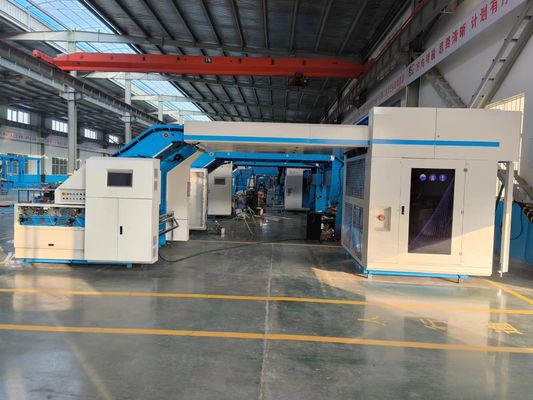

Machine Picture
