High Efficiency Automatic Pile Turner Stacking Machine For Cardboard

Certification
China Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. certification
China Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. certification
I'm Online Chat Now

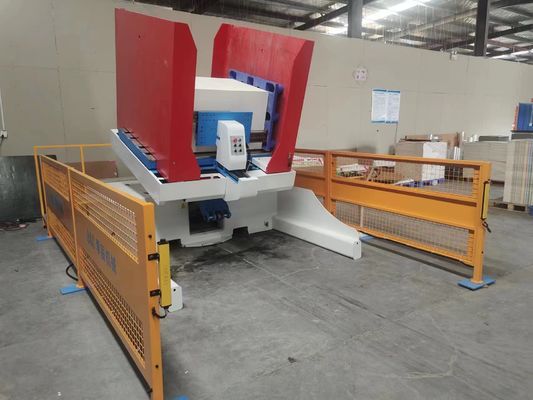

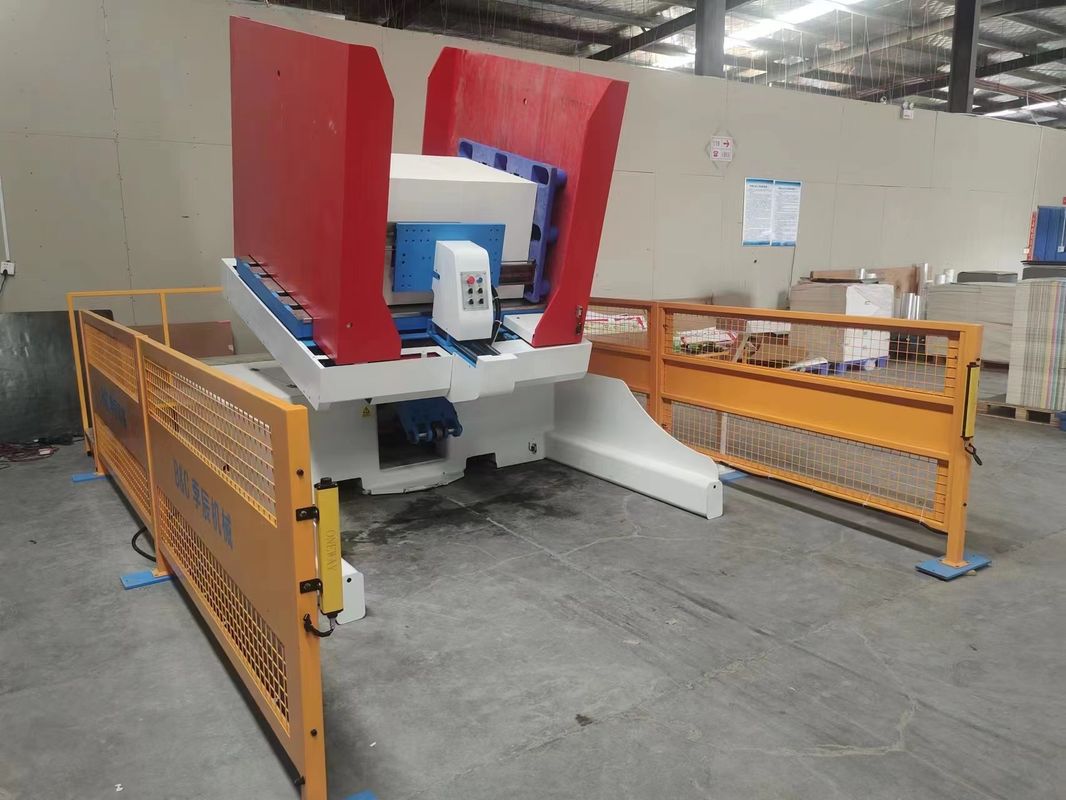

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard
High Efficiency Automatic Pile Turner Stacking Machine For Cardboard
High Efficiency Automatic Pile Turner Stacking Machine For Cardboard High Efficiency Automatic Pile Turner Stacking Machine For Cardboard

Large Image :  High Efficiency Automatic Pile Turner Stacking Machine For Cardboard

Product Details:
Place of Origin: China
Brand Name: INNOVO
Certification: CE
Model Number: LE1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 29000-33000 Set
Packaging Details: 3600*2900*2700mm
Delivery Time: 45-60 work days
Payment Terms: Western Union, T/T
Supply Ability: 5 Set Month

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard

Description
Plat: 1300mm Function: Turn
Point: Dedusting Loading: 3000kg
Max Size: 800*1300mm Min Size: 500*600mm
High Light:

Cardboard Pile Turner Machine

,

Automatic Pile Turner Machine

,

High Efficiency Pile Turner Machine

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard



performance feature



1. Operability: two operation panels make manual operation more convenient.

The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:

Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 0



High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 1





Performance characteristics

1. Flip the paper pile to replace the tray

Flip the original tray onto the top of the paper pile through the flip function, which is convenient to manually take out the original tray and replace it with other trays. Then flip the paper pile back to its original position with the flip function (especially when the paper pile is purchased and the tray is made of wood).



High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 2

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 3

High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 4High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 5High Efficiency Automatic Pile Turner Stacking Machine For Cardboard 6



Features:

1. It can remove impurities such as paper wool, paper dust, printing powder, etc.
2. Use before printing: It can remove impurities such as paper wool, paper dust improve the quality of printing paper and improve the printing quality.
3. Use after printing: it can remove powder spray, speed up ink drying, prevent adhesion and other quality problems.
4. Reduce paper wool, paper scraps and other impurities entering the printing machine, and extend the service life of the printing machine.
5. The whole stack of face paper automatically enters the machine and automatically exits the stack (optional).
6. The function of automatically turning and changing the tray.
7. Orderly stacking and high efficiency (about 3 minutes)





Technical Parameter
Model LE1300
Maximum paper size(mm) 800*1300
Minimum paper size(mm) 500*600
Power supply 3P 380V AC 50HZ
Machine weight(kg) 3500
Max. weight of paper pile(kg) 1000
Paper pile height(mm) 800-1600
Total machine power(kw) 10
Machine size(mm) 10600*2400*2750
