3min/round pallet airing Automatic Paper Dust Removing Aligning Pile Turner Machine

              Automatic Paper Dust Removing Aligning Pile Turner Machine

Machine brief introduction:

The Pile Turner functions:

Turning - Airing - Aligning - Jogging - Dust removing - Drying - Conditioning - Ionising - Pallet changing - Centering - Pulling sheets

This machine is mainly used in printing and packaging industry. It is a necessary equipment to improve the work efficiency and printing quality.


Technical Parameter

Features:

• It can remove the impurities such as paper fibers, paper scraps and printing powders.

Before printing: this machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and reduce the defection rate about 80%. After printing: This machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as paper back pollution. It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing machine.

• Paper separation.

By vibration and air jetting, the pile is filled with air cushion between the sheet by which the mis-feeding and double-sheeting can be avoided.

• Aligning.

With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.

• Turning.

For the piles of double sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work. The working environment will be much better for workers.

• High efficiency, easy operation.

For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes. Easy operation, no need of special training for operation.

Working flow chart

• Put the pile into platform of machine with hydraulic trolley.

• Turning up, rotating and tilting.

• Switch on the air jetting and vibration to remove duct(paper fiber, paper scraps)separate the sheets, aligning and turning paper pile.

• The pile turner will come back to its original position, turn down. The pile can be take out by the hydraulic trolley.

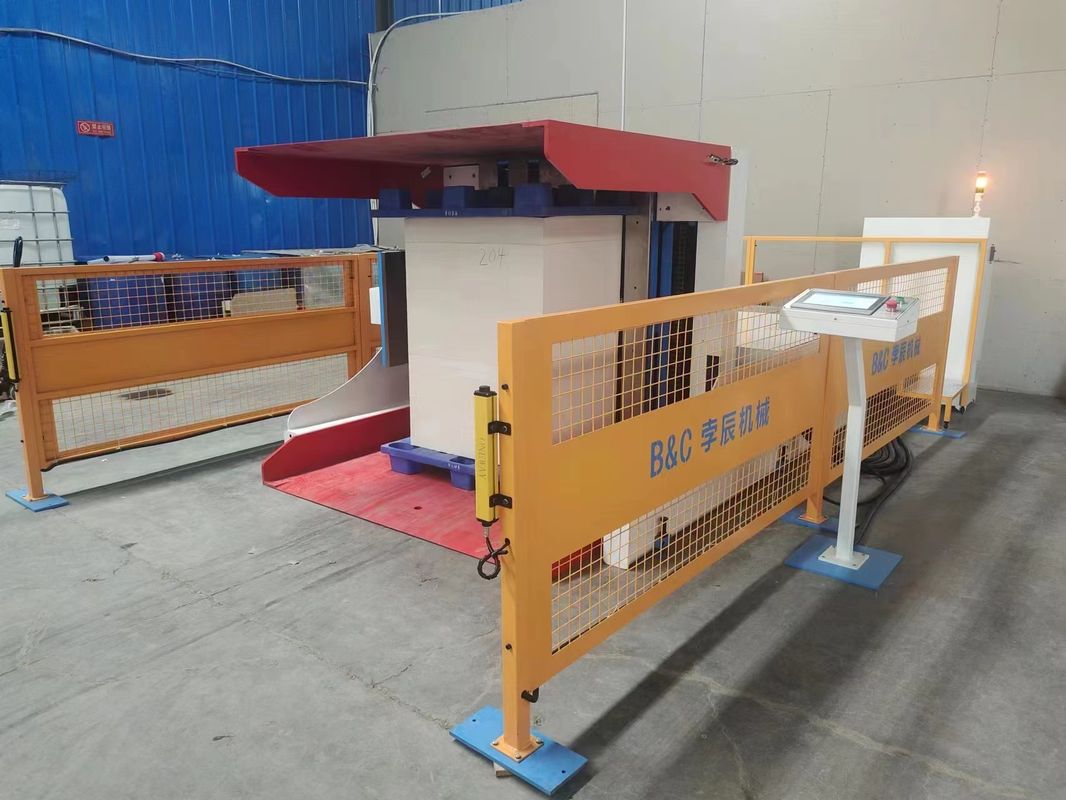

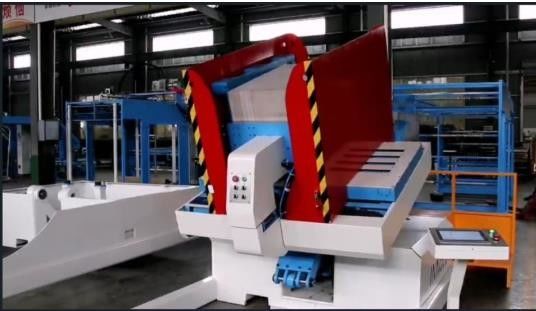

Machine Picture
