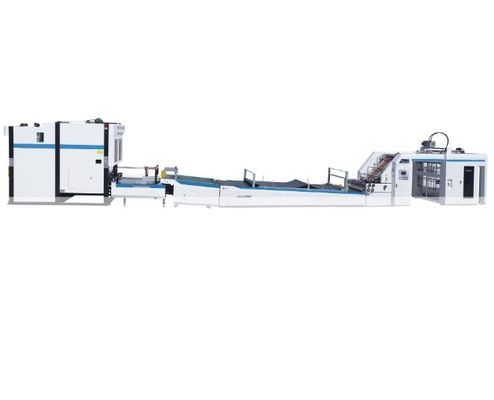

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS
High Performance Litho Laminator For Cardboard And Corrugated ZGFMS
High Performance Litho Laminator For Cardboard And Corrugated ZGFMS High Performance Litho Laminator For Cardboard And Corrugated ZGFMS

Large Image :  High Performance Litho Laminator For Cardboard And Corrugated ZGFMS

Product Details:
Place of Origin: China
Brand Name: innovo
Model Number: ZGFMS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1/set
Packaging Details: Wood Package
Delivery Time: 30
Supply Ability: 20

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS

Description
Production Type:: Electric After-Sales Service Provided: Online Support & Free Parts
Automatic Grade: Automatic Customization: Customized Request
Accuracy: ±1mm Bottom Sheet Thickness: ≤10mm
Factory Visit: Welcome Max Line Speed: 160meters/min
Max Paper: 1700*1700mm Minimum Paper: 360*380mm
Reference: From Other Customers Transport Package: Wooden Packing
Type: Roll-to-Roll Working Style: Automatic
High Light:

High Performance litho laminator machine

,

Cardboard and Corrugated litho laminator machine

,

High Performance litho laminating

 High-Performance Litho Laminator for Cardboard and Corrugated ZGFMS

Performance characteristics:

A .Performance characteristics
B. Cardboard laminate with corrugated or cardboard laminate with cardboard.
C. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
D.The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
E. The multifunctional rack of the bottom paper are suitable for curved corrugated.
F. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.
G. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
H.One -click adjustment of the whole machine (just enter the paper size).
I. Automatic paper collection and manual paper collection can be converted at any time.
J.Video monitoring (optional).

Structure:
A. Upper Paper Feeder: It can send stacks of 120-800gsm paper from above.
B. Bottom feed: It can send 0.5~10mm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.
Computerized high-speed fitting, up to 160m/min.
Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 0

Parameters

Model ZGFM1500 ZGFM1700 ZGFM1900 ZGFM2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2200mm
Min size 360*380mm 380*400mm 500*500mm 500*500mm
Top Paper 150-800g 150-800g 150-800g 150-800g
Bottom paper 300gsm-10mm 300gsm-10mm 300gsm-10mm 300gsm-10mm
Max speed 160m/min 160m/min 160m/min 160m/min
Power 33kw 32kw 38KW 38KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm
specifications 22500*2200*2850mm 22700*2400*2850mm 23000*2970*3000mm 23300*3000*3000mm

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 1

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.

2.TOP SHEET FEEDING MECHANISM

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 2

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 3

Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3.ELECTRICAL SYSTEM

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 4

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

4.PRE-STACK PART

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 5

Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.

5.Transmission System

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 6High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 7

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.



6. Left-right positioning system

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 8

The right and left are accurately positioned with synchronous side stoppers, the bottom paper and top paper are precisely positioned, and the bottom paper and top paper are accurately positioned with left-right positioning devices.

7.POSITIONING SYSTEM & GLUE ROLLER

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 9

The use of multiple sets of photoelectric sensor at bottom sheets relative position,control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.Stainless steel roller, never rust, after narrowly grinding,guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

8. TOUCH SCREEN OPERATION SYSTEM

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 10

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot.

9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 11

This system is for option, more suitable for large size and thick bottom sheets.
10. SHAFTLESS SERVO FEEDER(OPTIONAL)

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 12

This system is for option, more suitable for long size top sheets.
11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 13

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.
12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)

High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 14

Lubricate the bearing regularly to prolong the service life of the bearing

13.VIDEO MONITORING(OPTIONAL)
High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 15

LAYOUT FOR ZGFMS-1450
High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 16

Some parts list
High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 17
Serial Part Country Brand
1 main motor Germany Siemens
2 touch screen Taiwan WEINVIEW
3 servo motor Japan Yaskawa
4 Linear guide slide and guide rail Taiwan HIWIN
5 Paper speed reducer Germany Siemens
6 Solenoid reversing Japan SMC
7 Press front and rear motor Taiwan Shanteng
8 Press motor Germany Siemens
9 Main engine width modulation motor Taiwan CPG
10 Feeding width motor Taiwan CPG
11 Feeding motor Taiwan Lide
12 Vacuum pressure pump Germany Becker
13 Chain Japan TSUBAKI
14 Relay Japan Omron
15 optoelectronic switch Taiwan FOTEK
16 solid-state relay Taiwan FOTEK
17 Promixity switches Japan Omron
18 water level relay Taiwan FOTEK
19 Contactor France Schneider
20 PLC Germany Siemens
21 Servo drivers Japan Yaskawa
22 Frequency converter Japan Yaskawa
23 Potentiometer Japan TOCOS
24 Encoder Japan Omron
25 Button France Schneider
26 Brake resistor Taiwan TAYEE
27 Motion controller America Parker
28 Solid-state relay Taiwan FOTEK
29 Air switch France Schneider
30 Thermorelay France Schneider
31 DC power system Taiwan Mingwei

Automatic flip flop pallet stacker



High Performance Litho Laminator For Cardboard And Corrugated ZGFMS 18

  Packing And Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.

Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
