|Fully Automatic Flute Laminating Machine
|Machinery & Hardware, Commodity, Beverage, Food, Medical
|220/380V Or Customized
|Iron Plate And Aluminum Film
|Flute Laminating Machine, Flute Corrugated Board Paper Laminating Machine / Laminator Machine, Audley Packaging Machine Semi Automatic Flute Laminating Machine, New Factory Sale Cardboard Flute Laminating Machine, Automatic Flute Carton Board Laminate Mach
|Flute Corruagated Cardboard Laminating Machine, Paper Mounting Machine
|Pressing, High Efficiency, Gluing Corrugated Carton Board, For Cutting Cardboard, Wrapping Outer Paper
plc high speed flute laminator machine,
high accuracy flute laminator machine,
plc flute laminator

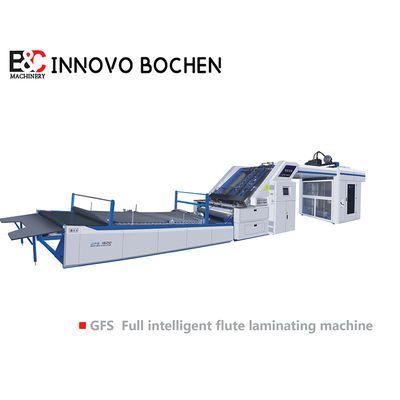

GFS1500 Automatic Flute Laminator Intelligentized Litho lLamination Machine Cardboard Laminator Machine For Corrugating Boxes
1.Lead edge feeding system,No feeding pressure structure,doesn't damage the corrugated and enhance the pressure resistance of the
2.Adopts top sheet aligner system to ensure high accuracy.Feeding mode can be chosen overlap sheer or separation sheet type.
3.Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet )
4.The design of large stainless steel anilox roller (160mm in diameter) is stable and high efficiency,coat evenly and save glue volume.
5.Automatic detection of the top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper,and the accuracy is high.
6.The dual use lifting platform,we can use the pre-stacker structure to push the pre-pile of paper into the platform.we can also push the stack of paper directly into the platform.
7.Automatic lubrication pump for all main bearing ensure machine strong endurance even under heavy duty working condition.
8.The multifunctional rack of the bottom paper are suitable for curved corrugaed.
9.Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
10.One-click adjustment of the whole machine (just enter the paper size)
11.Order memory function, one click to transfer the previous order, convenient and fast.
|Top sheet thickness
|Bottom sheet thickness
1. BOTTOM PAPER FEEDING
Lead edge feeding system. No feeding pressure structure doesn’t damage the corrugated and enhance the pressure resistance of the corrugated. The wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform. It can also run more than 400gsm of cardboard or gray board.

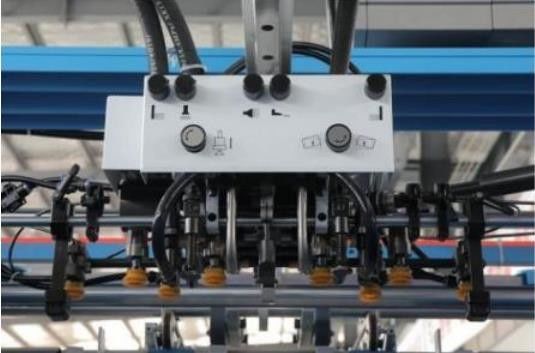

2. TOP SHEET FEEDING MECHANISM
Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Feeding mode can choose overlap sheet or separation sheet type. Adopts top sheet aligner system to ensure high accuracy.
3. ELECTRICAL SYSTEM
Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
Order memory function, one -click to transfer the previous order, convenient and fast.

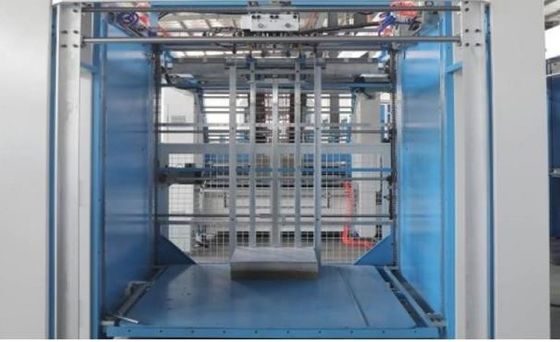

4. PRE-STACK PART
Pre-stack pile of paper under the condition of non-stop, improve efficiency.
The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.

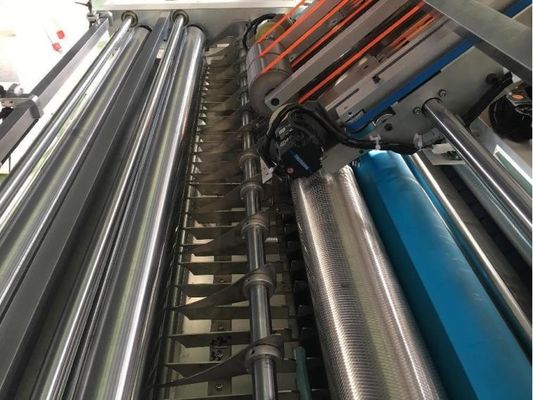

5. POSITIONING SYSTEM & GLUE ROLLER
Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue.
Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).
6. AUTOMATIC LUBRICATION SYSTEM
Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
