Product Details:
|
| Operation: | 1400*1850mm | Function: | Flip Flop |
|---|---|---|---|
| Selling: | Alignment | Min Pile High: | 850mm |
| Max Pile High: | 1600mm | Net Weight: | 4800kg |
| High Light: | 380v pile turner machine,3 phases pile turner machine,electric driven pile turner |
||

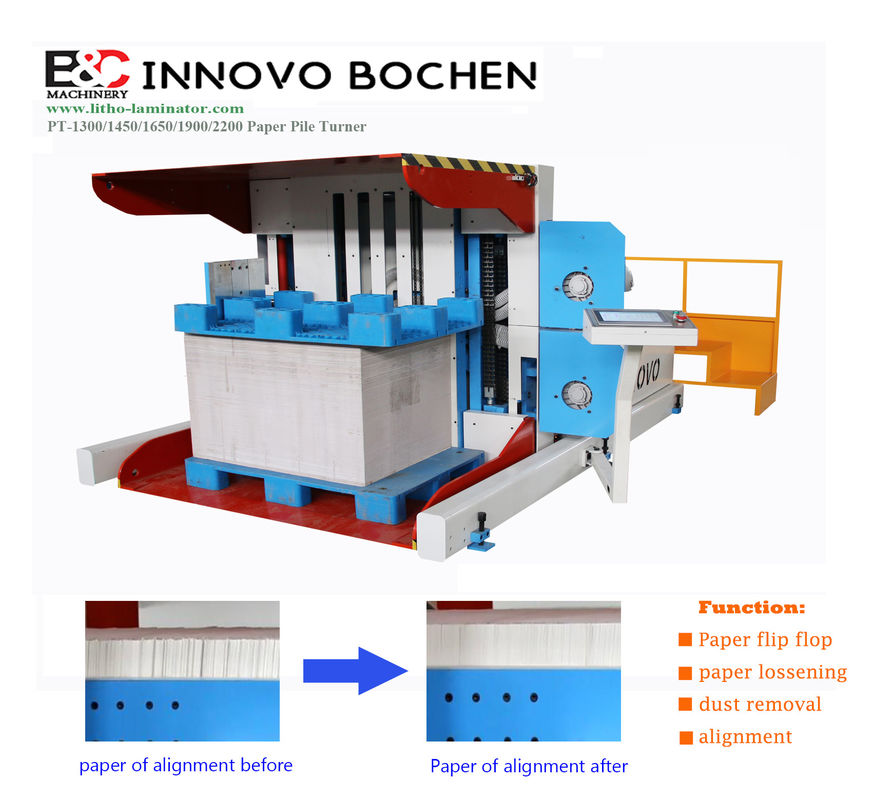

Automatic Paper Pile Aligning Turner And Stacking Machine Dust Removing
performance feature
1. Operability: two operation panels make manual operation more convenient.
The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:
Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.
2. Hydraulic system: temperature control device is used to prevent the instability of hydraulic system in high temperature season and cold season.
Performance characteristics
1. Flip the paper pile to replace the tray
Flip the original tray onto the top of the paper pile through the flip function, which is convenient to manually take out the original tray and replace it with other trays. Then flip the paper pile back to its original position with the flip function (especially when the paper pile is purchased and the tray is made of wood).
2. Align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume, replace the tray.
3. The machine can efficiently align the paper pile (about 3 minutes).
4. Automatic paper pile feeding and output function (optional).
| Technical Parameter | ||||
| Model | PT1300 | PT1450 | PT1650 | PT1900 |
| Maximum paper size(mm) | 800*1300 | 1100*1450 | 1200*1700 | 1400*850 |
| Minimum paper size(mm) | 500*600 | 500*600 | 500*600 | 500*600 |
| Power supply | 3P 380V AC 50HZ | |||
| Machine weight(kg) | 3500 | 4800 | 6500 | 8000 |
| Max. weight of paper pile(kg) | 1000 | 1400 | 2500 | 3000 |
| Paper pile height(mm) | 800-1600 | 850-1600 | 850-1600 | 900-1600 |
| Total machine power(kw) | 10 | 12 | 14 | 22 |
| Machine size(mm) | 10600*2400*2750 | 11400*2600*2950 | 1300*2700*2950 | 13800*2900*2950 |
