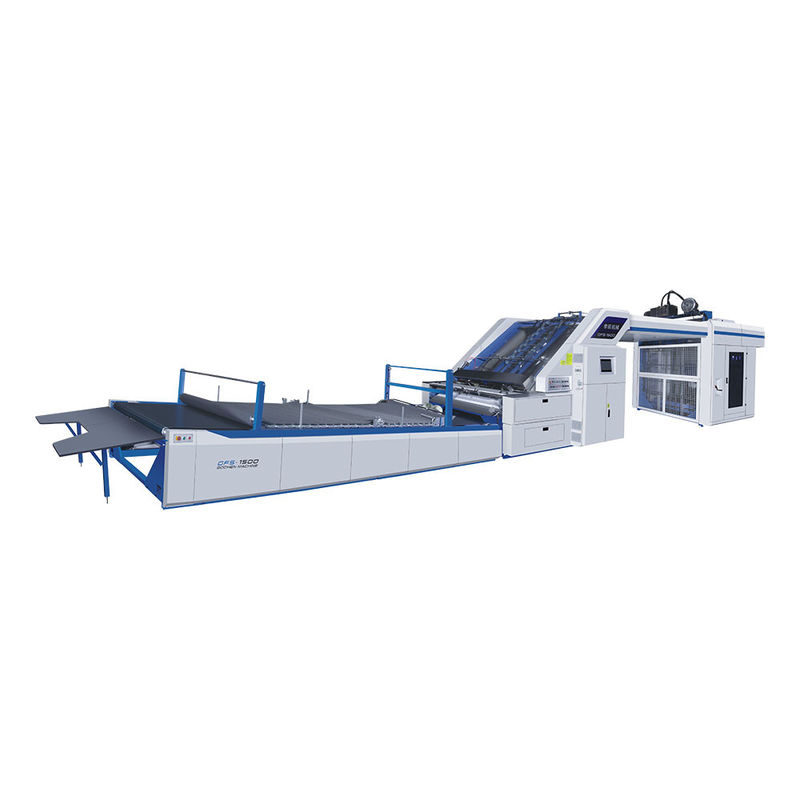

GFS1500A Automatic Flute Laminator Machine

GFS1500A Automatic Flute Laminator Machine

Performance characteristics

Function:

The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

Principles:

The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

Applicable materials:

Top paper --- 120 ~ 800g/m paper

Bottom paper--- ≤10mm ABCDEF corrugated board ≥300gsm

Glue - Corn starch glue, white glue etc., PH value between 6 ~ 8

● Cardboard laminates with corrugated or cardboard laminates with cardboard.

● Automatic detect of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

● The bottom paper feeding part use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.

● Adopt servo motor system realizes automatic adjustment of glue volume and roller pressure. When change order, it will be more fast and convenient.

● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity. 160mm diameter anilox roller can ensure the stability when machine at high speed.

● Two sets free-cleaning pressure roller (150mm in diameter) are not afraid to dip glue and reduce the workload.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).

SPECIFICATION:

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

Use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard. The air split valve of the fan is controlled by a servo motor. When controlling the air volume, it is more accurate to ensure the stability and smoothness of the sheet running.

2. TOP SHEET FEEDING MECHANISM

Equip with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

3. ELECTRICAL SYSTEM

Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

4. PRE-STACK PART

Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.

5. POSITIONING SYSTEM & GLUE ROLLER

Photocell and Yaskawa servo system ensure the accuracy of orientation of top and bottom paper. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue. Two sets free-cleaning pressure roller (150mm in diameter) are not afraid to dip glue and reduce the workload.

The coating amount is controlled by servo motor, more convenient and accurate.
