Product Details:
|
| Automatic Grade: | Full Automactic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation And Etc |
|---|---|---|---|
| Type: | Fully Automatic Flute Laminating Machine | Application: | Machinery & Hardware, Commodity, Beverage, Food, Medical |
| Voltage: | 220/380V Or Customized | Packaging: | Iron Plate And Aluminum Film |
| Power: | 20KW/22KW/24KW | Name: | Flute Laminating Machine, Flute Corrugated Board Paper Laminating Machine / Laminator Machine, Audley Packaging Machine Semi Automatic Flute Laminating Machine, New Factory Sale Cardboard Flute Laminating Machine, Automatic Flute Carton Board Laminate Mach |
| Product Name: | Flute Corruagated Cardboard Laminating Machine, Paper Mounting Machine | Speed: | 200m/Min |
| Function: | Pressing, High Efficiency, Gluing Corrugated Carton Board, For Cutting Cardboard, Wrapping Outer Paper | Maximum Paper: | 1500*1500mm,1700*1700mm,1900*1900mm |
| Minimum Paper: | 360*380mm,360*400mm | ||
| High Light: | 2200mm automatic flute laminator machine,5 ply automatic flute laminator machine,180 gsm corrugated box flute laminator |
||

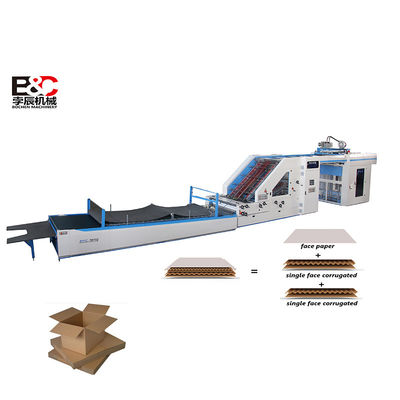

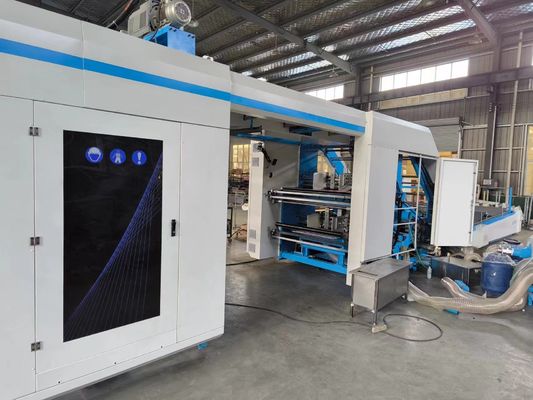

SFC 2200 5 Ply 180 Gsm Corrugated Box Online Automatic Pasting Flute Lamination Machine
Performance characteristics
1.This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
2.Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.
3.Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
4.The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and together with lead edge feeding system.
5.The multifunctional rack of the bottom paper are suitable for curved corrugated.
6.Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.
7.The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
8.Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.
9. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
10. One -click adjustment of the whole machine (just enter the paper size).
Parameter
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
| Maximum paper | 1500*1500mm | 1700*1700mm | 1900*1900mm | 2200*2200mm |
| Minimum paper | 360*380mm | 360*400mm | 500*500mm | 500*500mm |
| Top sheet thickness | 150-800g/m² | 150-800g/m² | 150-800g/m² | 150-800g/m² |
| Bottom sheet thickness | paper thickness≤10mm | paper thickness≤10mm | paper thickness≤10mm | paper thickness≤10mm |
| Working speed | 160m/min | 160m/min | 160m/min | 160m/min |
| Accuracy | ±0.8mm | ±0.8mm | ±0.8mm | ±0.8mm |
| Total power | 22kw | 22kw | 24kw | 24kw |
| Dimension | 16000*2300*2520mm | 16200*2500*2520mm | 16500*2748*2520mm | 16900*2960*2520mm |
| Weight | 10000kg | 10500kg | 11000kg | 12000kg |
1.BOTTOM SHEET FEEDING

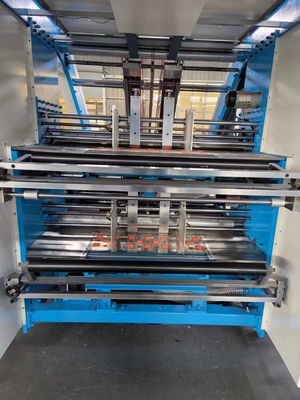

One bottom feeding part uses imported servo motor electric controlling system, with Japan NITTA suction belt to ensure suction power stable and smoothly. Another bottom feeding part adopts lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.
2. TOP SHEET FEEDING MECHANISM
Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin
paper can be delivered rapidly and smoothly.
3. ELECTRICAL SYSTEM
Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
4. PRE-STACK PART
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
5. POSITIONING SYSTEM & GLUE ROLLER
Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
6. AUTOMATIC LUBRICATION SYSTEM
Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
