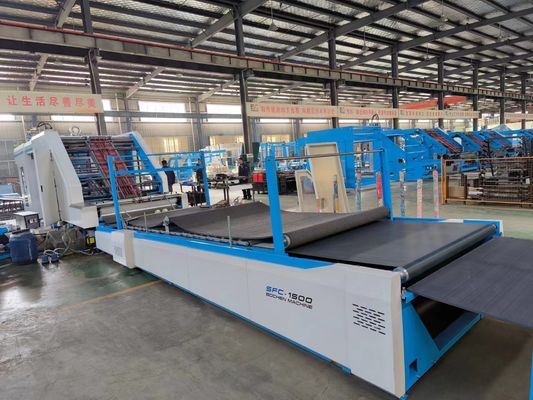

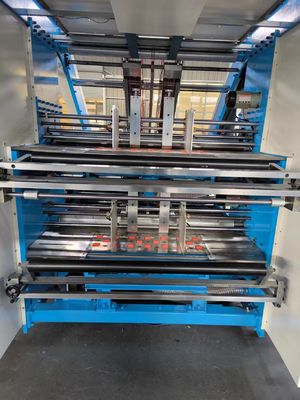

Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated

Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated

Large Image :  Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: SFC-1500/1700/1900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 65000-85000USD
Packaging Details: Vacuum bag
Delivery Time: 30 Days
Supply Ability: 30 Sets per month

Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated

Description
Applicable Industries:: Corrugated Box Company Machine Product Type: For 3/5/7ply Corrugated Board
Max Line Speed: Max 150meters/min Lamination Type: 2+2+1 Type
Max Size For SFC-1500: 1500*1500mm Production Capacity: 30 Sets/month
High Light:

servo paper laminating machine

,

three in one paper laminating machine

,

5 ply lamination machine for paper

Servo Three In One 5ply Automatic High Speed Corrugated Paper Laminating Machine

Performance characteristics

● This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.

● Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.

● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.


● The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and together with lead edge feeding system.


● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.

● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

● Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).
● Video monitoring.

Parameters:


ModelSFC1500SFC1700SFC1900SFC2200
Max size1500*15000mm1700*1700mm1900*1900mm2200*2100mm
Min size360*380mm380*400mm450*450mm500*500mm
Top Paper120-800g120-800g120-800g120-800g
Bottom paper300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
Max speed150m/min150m/min150m/min150m/min
Power22kw25kw27KW30KW
Stick accuracy±1.0mm±1.0mm±1.0mm±1.0mm



Structural features:
◆ Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

◆ Computerized high-speed fitting, up to 12,000 pieces per hour.

◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

◆ Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

◆ Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

◆ Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.



BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 0
Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.


2. TOP SHEET FEEDING MECHANISM
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 1Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 2
Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3. ELECTRICAL SYSTEM
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 3
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.


4. PRE-STACK PART
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 4
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.



5. TRANSMISSION
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 5Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 6
Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.

6.Left-right positioning system
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 7



7. POSITIONING SYSTEM & GLUE ROLLER
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 8

The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.


8. TOUCH SCREEN OPERATION SYSTEM
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 9

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot



9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 10

This system is for option, more suitable for large size and thick bottom sheets.


10. SHAFTLESS SERVO FEEDER(OPTIONAL)
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 11

This system is for option, more suitable for long size top sheets.

11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 12Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 13

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.


12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 14

Lubricate the bearing regularly to prolong the service life of the bearing


13. VIDEO MONITORING(OPTIONAL)
Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 15

This option can monitor machine running, operator need not walking aroung the machine frequently.



Machine Picture



Servo Three In One 5 Ply Paper Laminating Machine Automatic High Speed Corrugated 16
