Product Details:
|
| Min Size Pape: | 500*500mm | Total Power: | 27KW |
|---|---|---|---|
| Max Size: | 1900*1900mm | Bottom Paper: | ≤10mm ABCDEF Corrugated Board ≥300gsm Cardboard |
| Top Paper: | 120-800g | Stick Accuracy: | ±1mm |
| Option: | Both Manual Work And Automatic Stacking | Condition: | New |
| Keywords: | Laminating,coating | Laminating Material: | Cardboard, Corrugated Paper, EPE Foam, Etc. |
| Our Services: | Two Years Warranty | Packaging Material: | Paper, Wood |
| Shipping Way: | By Sea | ||

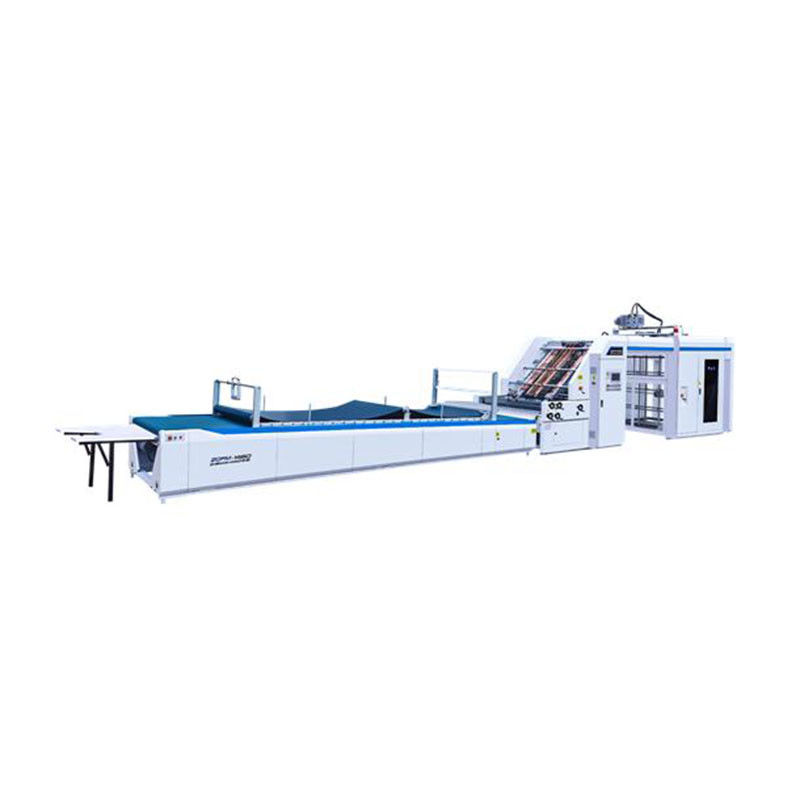

| High Light: | 1900mm flute laminator,Automatic Servo Correct flute laminator |
||
Parameters:
| Model | ZGFM 1450 Pro | ZGFM 1650 Pro | ZGFM 1900 Pro |
| Max size | 1500*1500mm | 1700*1700mm | 1900*1900mm |
| Min size | 360*380mm | 360*400mm | 500*500mm |
| Top Paper | 120-800g | 120-800g | 120-800g |
| Bottom paper | ≤10mm ABCDEF corrugated board ≥300gsm cardboard | ≤10mm ABCDEF corrugated board ≥300gsm cardboard | ≤10mm ABCDEF corrugated board ≥300gsm cardboard |
| Max speed | 180m/min | 180m/min | 180m/min |
| Power | 22kw | 25kw | 27KW |
| Stick accuracy | ±1mm | ±1mm | ±1mm |
1. Cardboard laminates with corrugated or cardboard laminates with cardboard.
2.Automatic detect of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
3.The bottom paper feeding part use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
4.Adopt servo motor system realizes automatic adjustment of glue volume and roller pressure. When change order, it will be more fast and convenient.
5.The multifunctional rack of the bottom paper are suitable for curved corrugated.
6.Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity. 160mm diameter anilox roller can ensure the stability when machine at high speed.
7.Two sets free-cleaning pressure roller (150mm in diameter) are not afraid to dip glue and reduce the workload.
8.Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
9. One -click adjustment of the whole machine (just enter the paper size).
10. Video monitoring (optional).
BRANCH INTRODUCTION:
1. BOTTOM SHEET FEEDING
Use servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard. The air split valve of the fan is controlled by a servo motor. When controlling the air volume, it is more accurate to ensure the stability and smoothness of the sheet running.
2. TOP SHEET FEEDING MECHANISM
Equip with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
3. ELECTRICAL SYSTEM
Mainly uses Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen. Order memory function, one -click to transfer the previous order, convenient and fast.
4. TRANSMISSION SYSTEM
Gates synchronous belt together with SKF bearing as main transmission is adopted to ensure stability. When change bottom sheet thickness, the rollers pressure can be controlled by servo motor quickly. Meanwhile, machine also equips handle with mechanical encoder.
5. POSITIONING SYSTEM & GLUE ROLLER
Photocell and Yaskawa servo system ensure the accuracy of orientation of top and bottom paper. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue. Two sets free-cleaning pressure roller (150mm in diameter) are not afraid to dip glue and reduce the workload.
The coating amount is controlled by servo motor, more convenient and accurate.
6. PRE-STACK PART
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
7. AUTOMATIC LUBRICATION SYSTEM
Automatic lubrication pump for all main bearing ensure machine strong endurance even under heavy duty working condition.
OPTIONS:
1. LEADING EDGE FEEDING SYSTEM
Lead edge feeding ensure thick corrugated board like 5 or 7 layers run smoothly even under very curing condition.
2. SHAFTLESS SERVO FEEDER
Shaftless servo feeder is utilized for extra long sheet at flexible motion.
3. TOP PAPER CORRECTION SYSTEM
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
