Product Details:
|
| Produce: | 2 Layerboard(cardboard+cardboard) | Laminating: | Corrugated+corrugated+cardboard |
|---|---|---|---|
| Applicable: | Printing Shops | Origin: | China |
| High Light: | high speed automatic flute laminator machine,corrugated board automatic flute laminator machine,2layer high speed flute laminator machine |
||

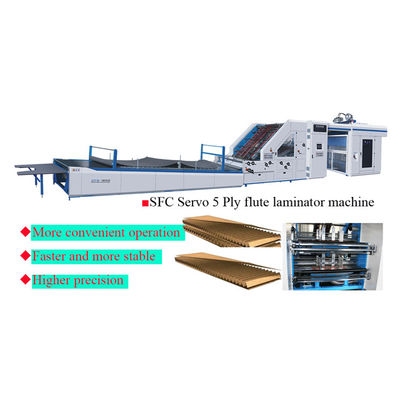

High Speed Corrugated Board Cardboard Paper Automatic Flute Laminating Machine
1. Performance characteristics
1. This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
2. Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.
3. The multifunctional rack of the bottom paper are suitable for curved corrugated.
4. Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.
5. Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.
6. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
7. One -click adjustment of the whole machine (just enter the paper size).
8. Video monitoring.
2. Parameters:
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
| Max size | 1500*1500mm | 1700*1700mm | 1900*1900mm | 2200*2200mm |
| Min size | 360*380mm | 360*400mm | 500*500mm | 500*500mm |
| Top sheet thickness | 120-800g/㎡ | |||
| Bottom sheet thickness | ≤10mm | |||
| Work speed | 160m/min | |||
| Power | 22kw | 22kw | 24kw | 24kw |
| Stick accuracy | ±0.8mm | |||
3. BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING
The two bottom feeding part adopts lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.
Two sets lead edge feeding system, suction is greater, the stability is higher, and the cost of use is lower.
2. ELECTRICAL SYSTEM
Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
Machine has 7-9 servo motors, use Siemens PLC and frequency inverter.
Mainly use SKF and NSK bearings.
3. TRANSMISSION
Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
