Product Details:
|
| Driven: | Electric | Type: | Cartons |
|---|---|---|---|
| Packaging: | Paper | Number: | 2200 |
| High Light: | high speed corrugated laminating machine,2200*2200mm corrugated laminating machine,cardboard laminating machine automatic |
||

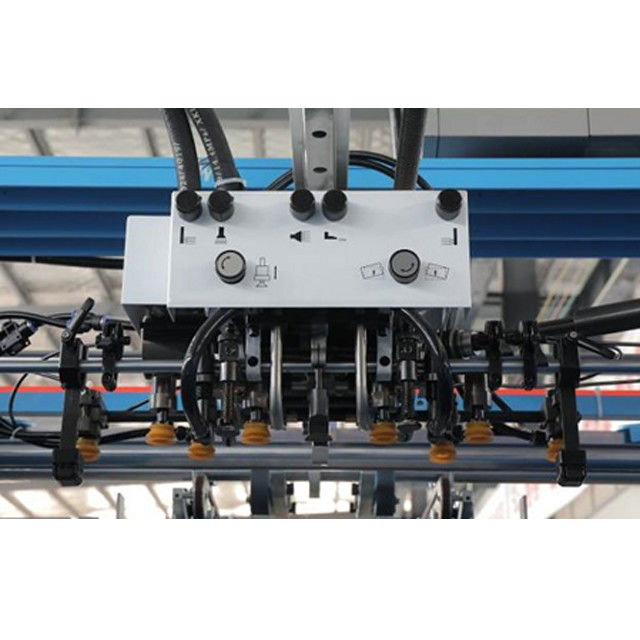

High Speed Corrugated Board Cardboard Paper Automatic Flute Laminating Machine
Performance characteristics
1. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
2. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
3. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
Specifications
| Model | GFS2200 |
| Max paper | 2200*2200mm |
| Min paper | 500*500mm |
| Top sheet thickness | 150-800 g/m2 |
| Bottom sheet thickness | 10mm |
| Working speed | 200m/min |
| Accuracy | 0.8mm |
| Total power | 22kw |
| Dimension | 15700*3100*2520mm |
| Machine weight | 9600kg |
4. The multifunctional rack of the bottom paper are suitable for curved corrugated.
5. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
6. One -click adjustment of the whole machine (just enter the paper size).
