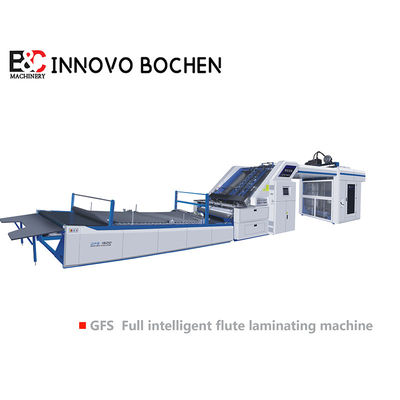

Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine

Description
Automatic Grade: Full Automactic After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation And Etc
Type: Fully Automatic Flute Laminating Machine Application: Machinery & Hardware, Commodity, Beverage, Food, Medical
Voltage: 220/380V Or Customized Packaging: Iron Plate And Aluminum Film
Power: 20KW/22KW/24KW Name: Flute Laminating Machine, Flute Corrugated Board Paper Laminating Machine / Laminator Machine, Audley Packaging Machine Semi Automatic Flute Laminating Machine, New Factory Sale Cardboard Flute Laminating Machine, Automatic Flute Carton Board Laminate Mach
Product Name: Flute Corruagated Cardboard Laminating Machine, Paper Mounting Machine Speed: 200m/Min
Function: Pressing, High Efficiency, Gluing Corrugated Carton Board, For Cutting Cardboard, Wrapping Outer Paper Maximum Paper: 1500*1500mm,1700*1700mm,1900*1900mm
Minimum Paper: 360*380mm,360*400mm
High Light:

Corrugated Board Flute Lamination Pasting Machine

,

200 Meter/Min Flute Lamination Pasting Machine

High Speed Automatic Corrugated Board Flute Lamination Machine/Paper Sheet Flute Laminator Machine




Performance characteristics


1.Lead edge feeding system,No feeding pressure structure,doesn't damage the corrugated and enhance the pressure resistance of the

corrugated.

2.Adopts top sheet aligner system to ensure high accuracy.Feeding mode can be chosen overlap sheer or separation sheet type.



3.Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet )



4.The design of large stainless steel anilox roller (160mm in diameter) is stable and high efficiency,coat evenly and save glue volume.



5.Automatic detection of the top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper,and the accuracy is high.


6.The dual use lifting platform,we can use the pre-stacker structure to push the pre-pile of paper into the platform.we can also push the stack of paper directly into the platform.

7.Automatic lubrication pump for all main bearing ensure machine strong endurance even under heavy duty working condition.

8.The multifunctional rack of the bottom paper are suitable for curved corrugaed.

9.Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

10.One-click adjustment of the whole machine (just enter the paper size)

11.Order memory function, one click to transfer the previous order, convenient and fast.

12.Video monitoring

Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 0

Parameter

Model GFS1500 GFS1700 GFS1900 GFS2200
Maximum paper 1500*1500mm 1700*1700mm 1900*1900mm 2200*2200mm
Minimum paper 360*380mm 360*400mm 500*500mm 500*500mm
Top sheet thickness 150-800g/m² 150-800g/m² 150-800g/m² 150-800g/m²
Bottom sheet thickness paper thickness≤10mm paper thickness≤10mm paper thickness≤10mm paper thickness≤10mm
Working speed 200m/min 200m/min 200m/min 200m/min
Accuracy ±0.8mm ±0.8mm ±0.8mm ±0.8mm
Total power 22kw 22kw 24kw 24kw
Dimension 15000*2400*2520mm 15300*2600*2520mm 15500*2800*2520mm 15700*3100*2520mm
Weight 8000kg 8600kg 9000kg 9600kg

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING



Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 1



Lead edge feeding system. No feeding pressure structure doesn’t damage the corrugated and enhance the pressure resistance of the corrugated. The wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform. It can also run more than 400gsm of cardboard or gray board.

2. TOP SHEET FEEDING MECHANISM
Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 2
Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Feeding mode can choose overlap sheet or separation sheet type. Adopts top sheet aligner system to ensure high accuracy.

3. ELECTRICAL SYSTEM
Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 3


Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.

Order memory function, one -click to transfer the previous order, convenient and fast.

4. PRE-STACK PART
Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 4


Pre-stack pile of paper under the condition of non-stop, improve efficiency.
The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.

5. POSITIONING SYSTEM & GLUE ROLLER
Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 5


Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue.

Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

6. AUTOMATIC LUBRICATION SYSTEM
Corrugated Board Flute Lamination Pasting Machine 200 Meter/Min High Speed Flute Laminating Machine 6

Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
