Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational

Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational

Large Image :  Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: SFC-1450/1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 48000-62000USD
Packaging Details: Vacuum bag
Delivery Time: 15-30 Days
Supply Ability: 30 Sets per month

Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational

Description
Max Paper Sheet: 1500*1500mm Min Paper Sheet: 360*380mm
Line Speed: 150-180meters/min Processing Type: Sheet To Sheet Laminator
Dimension(L*W*H): 1200*230*200cm Production Capacity: 30 Sets/month
High Light:

Corrugated Flute Laminating Machine

,

5ply Corrugated Laminating Machine

,

1500*1500mm Corrugated Laminating Machine

              High Speed  Automatic Flute Lamination Machine



Performance characteristics



● This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.



● Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.



● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.



● The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and together with lead edge feeding system.



● The multifunctional rack of the bottom paper are suitable for curved corrugated.



● Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.



● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.



● Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.



● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.



● One -click adjustment of the whole machine (just enter the paper size).



● Video monitoring.



Parameters:



Model SFC1450 SFC1650 SFC1900 SFC2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2100mm
Min size 360*380mm 380*400mm 450*450mm 500*500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
Max speed 150m/min 150m/min 150m/min 150m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm





Structural features:

◆ Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.



◆ Computerized high-speed fitting, up to 12,000 pieces per hour.



◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.



◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker



◆ Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.



◆ Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.



◆ Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.







BRANCH INTRODUCTION:


1. BOTTOM PAPER FEEDING

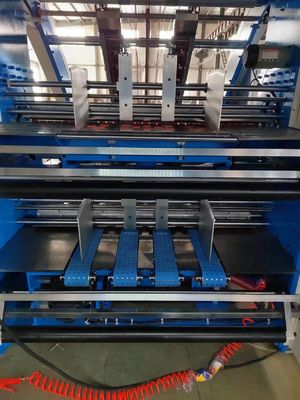

Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 0
Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.


2. TOP SHEET FEEDING MECHANISM
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 1Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 2
Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3. ELECTRICAL SYSTEM
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 3
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.


4. PRE-STACK PART
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 4
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.



5. TRANSMISSION
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 5Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 6
Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.

6.Left-right positioning system
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 7



7. POSITIONING SYSTEM & GLUE ROLLER
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 8

The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.


8. TOUCH SCREEN OPERATION SYSTEM
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 9

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot



9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 10

This system is for option, more suitable for large size and thick bottom sheets.


10. SHAFTLESS SERVO FEEDER(OPTIONAL)
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 11

This system is for option, more suitable for long size top sheets.

11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 12Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 13

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.


12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 14

Lubricate the bearing regularly to prolong the service life of the bearing


13. VIDEO MONITORING(OPTIONAL)
Automatic Corrugated Flute Laminating Machine 5ply Three In One Multifuncational 15

This option can monitor machine running, operator need not walking aroung the machine frequently.

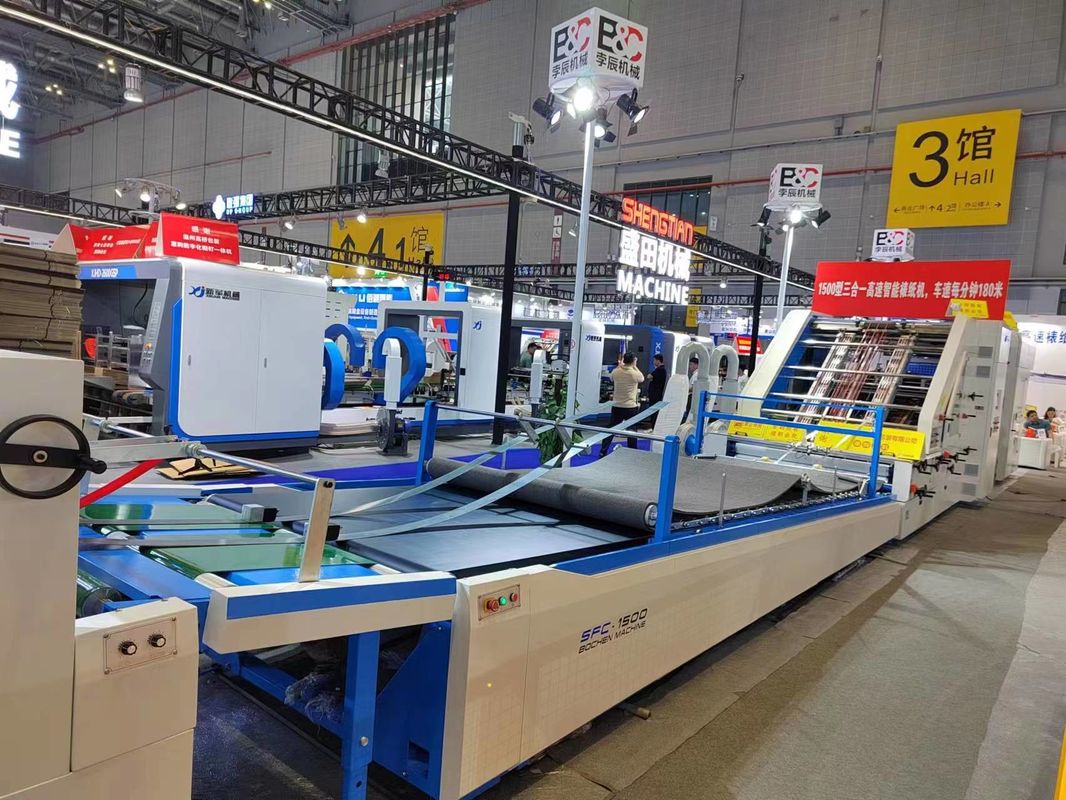

Machine Picture
