High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic

High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic

Large Image :  High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: GFS-1450/1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 55000-78000USD
Packaging Details: Vacuum bag
Delivery Time: 15-30 Days
Supply Ability: 30 Sets per month

High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic

Description
FOB Price: Discussed Sheet Thickness For Bottom: 300gsm-10mm
Tight Precision: 0.08mm Paper Material: Corrugated Or Cardboard
Paper Size For Material: Max 1500*1500mm Gram Weight Of Top Paper: 120-800gsm Printed
High Light:

Corrugated Flute Laminator Machine 10mm

,

Corrugated Cardboard Flute Laminator Machine

,

Automatic Corrugated Flute Laminator Machine

                          Fully automatic intelligent corrugated cardboard flute litho laminator for corrugated box


Performance characteristics:

● Lead edge feeding system. No feeding pressure structure, doesn’t damage the corrugated and enhance the pressure resistance of the corrugated.


● Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.


● Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

● The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

● The multifunctional rack of the bottom paper are suitable for curved corrugated.

● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

● One -click adjustment of the whole machine (just enter the paper size).

● Order memory function, one -click to transfer the previous order, convenient and fast.


● Video monitoring.

Parameters:

Model GFS1450 GFS1650 GFS1900 GFS2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2100mm
Min size 360*380mm 380*400mm 450*450mm 500*500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
300gsm-10mm
Corrugated board and cardboard
Max speed 180m/min 180m/min 180m/min 180m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm



Structural features:
◆ Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

◆ Computerized high-speed fitting, up to 18,000 pieces per hour.

◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

◆ Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

◆ Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

◆ Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.



BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 0
Use imported Servo motor electric controlling system, with Japan NITTA suction
belt to make suction power inverter, and belt cleaned by water roller; Patented
technology to ensure corrugate and cardboard goes out smoothly and simple operation.

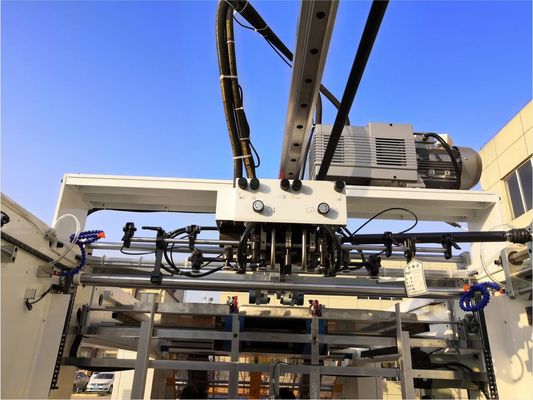

2. TOP SHEET FEEDING MECHANISM
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 1High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 2
Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3. ELECTRICAL SYSTEM
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 3
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.


4. PRE-STACK PART
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 4
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.


5. TRANSMISSION
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 5High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 6
Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.


6.Left-right positioning system
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 7


7. POSITIONING SYSTEM & GLUE ROLLER
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 8
The use of multiple sets of photoelectric sensor at bottom sheets relative position,
control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.


8. TOUCH SCREEN OPERATION SYSTEM
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 9
It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot

9. BIG SUCTION SYSTEM FOR BOTTOM PAPER
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 10High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 11
This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.


10. AUTOMATIC LUBRICATION SYSTEM
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 12
Lubricate the bearing regularly to prolong the service life of the bearing

11. SHAFTLESS SERVO FEEDER(OPTIONAL)
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 13
This system is for option, more suitable for long size top sheets.


12. VIDEO MONITORING(OPTIONAL)
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 14
This option can monitor machine running, operator need not walking aroung the machine frequently.

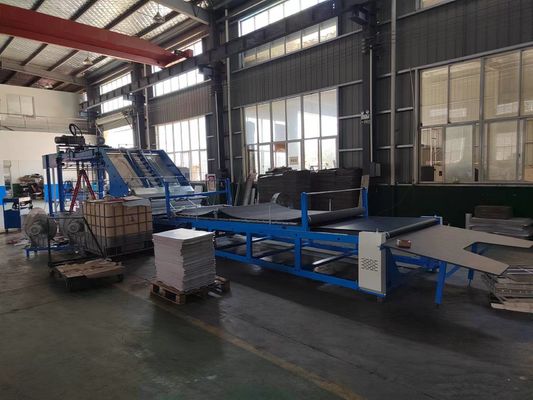

Machine Picture
High Speed Corrugated Cardboard Flute Laminator Machine Fully Intelligence Automatic 15

Contact Details
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd.

Contact Person: Andy

Tel: +8618958495077
