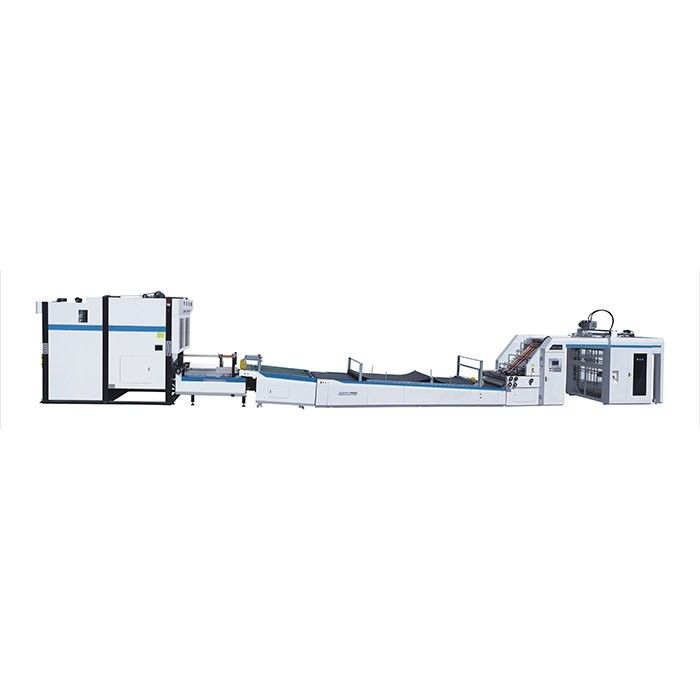

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines

Certification
China Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. certification
China Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. certification
I'm Online Chat Now

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines
1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines
1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines

Large Image :  1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines

Product Details:
Place of Origin: China
Brand Name: innovo
Model Number: ZGFT1700
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1
Packaging Details: Wood Package
Delivery Time: 30
Supply Ability: 20

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines

Description
Driven Type:: Electric After-Sales Service Provided: Online Support & Free Parts
Type: Printing Machine Automatic Grade: Automatic
Maximum Paper: 1700*17000mm Minimum Paper: 360*400mm
Total Power: 38kw Bottom Sheet Thickness: ≤10mm
Accuracy: 1mm Specification: 22700*2400*2850mm
High Light:

17000mm Flute Lamination Machine

,

Flute Lamination Machine Automatic

,

38kw corrugated laminating machine

Series Flute Lamination Machine For Press And Paper Converting Machines ZGFT1700

Performance characteristics:

A .Performance characteristics
B. Cardboard laminate with corrugated or cardboard laminate with cardboard.
C. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
D.The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
E. The multifunctional rack of the bottom paper are suitable for curved corrugated.
F. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.
G. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
H.One -click adjustment of the whole machine (just enter the paper size).
I. Automatic paper collection and manual paper collection can be converted at any time.
J.Video monitoring (optional).

Parameters

Model ZGFT1500 ZGFT1700 ZGFT1900 ZGFT2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2100mm
Min size 360*380mm 380*400mm 450*450mm 500*500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm

300gsm-10mm

300gsm-10mm 300gsm-10mm

Max speed 10m/min 160m/min 160m/min 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm



applicable materials:
Paste paper --- 120 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
Structural features:
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.
Computerized high-speed fitting, up to 150m/min.
Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling



1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 4

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 5

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.

2.TOP SHEET FEEDING MECHANISM

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 6

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 7

Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3.ELECTRICAL SYSTEM

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 8

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

4.PRE-STACK PART

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 9

Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.

5.Transmission System

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 101700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 11

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.



6. Left-right positioning system

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 12

The right and left are accurately positioned with synchronous side stoppers, the bottom paper and top paper are precisely positioned, and the bottom paper and top paper are accurately positioned with left-right positioning devices.

7.POSITIONING SYSTEM & GLUE ROLLER

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 13

The use of multiple sets of photoelectric sensor at bottom sheets relative position,control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.Stainless steel roller, never rust, after narrowly grinding,guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

8. TOUCH SCREEN OPERATION SYSTEM

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 14

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot.

9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 15

This system is for option, more suitable for large size and thick bottom sheets.
10. SHAFTLESS SERVO FEEDER(OPTIONAL)

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 16

This system is for option, more suitable for long size top sheets.
11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 17

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.
12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)

1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 18

Lubricate the bearing regularly to prolong the service life of the bearing

13.VIDEO MONITORING(OPTIONAL)
1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 19

LAYOUT FOR ZGFMS-1450
1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 20

Some parts list
1700x17000mm Flute Lamination Machine Automatic For Press And Paper Converting Machines 21
Serial Part Country Brand
1 main motor Germany Siemens
2 touch screen Taiwan WEINVIEW
3 servo motor Japan Yaskawa
4 Linear guide slide and guide rail Taiwan HIWIN
5 Paper speed reducer Germany Siemens
6 Solenoid reversing Japan SMC
7 Press front and rear motor Taiwan Shanteng
8 Press motor Germany Siemens
9 Main engine width modulation motor Taiwan CPG
10 Feeding width motor Taiwan CPG
11 Feeding motor Taiwan Lide
12 Vacuum pressure pump Germany Becker
13 Chain Japan TSUBAKI
14 Relay Japan Omron
15 optoelectronic switch Taiwan FOTEK
16 solid-state relay Taiwan FOTEK
17 Promixity switches Japan Omron
18 water level relay Taiwan FOTEK
19 Contactor France Schneider
20 PLC Germany Siemens
21 Servo drivers Japan Yaskawa
22 Frequency converter Japan Yaskawa
23 Potentiometer Japan TOCOS
24 Encoder Japan Omron
25 Button France Schneider
26 Brake resistor Taiwan TAYEE
27 Motion controller America Parker
28 Solid-state relay Taiwan FOTEK
29 Air switch France Schneider
30 Thermorelay France Schneider
31 DC power system Taiwan Mingwei

Automatic flip flop pallet stacker
