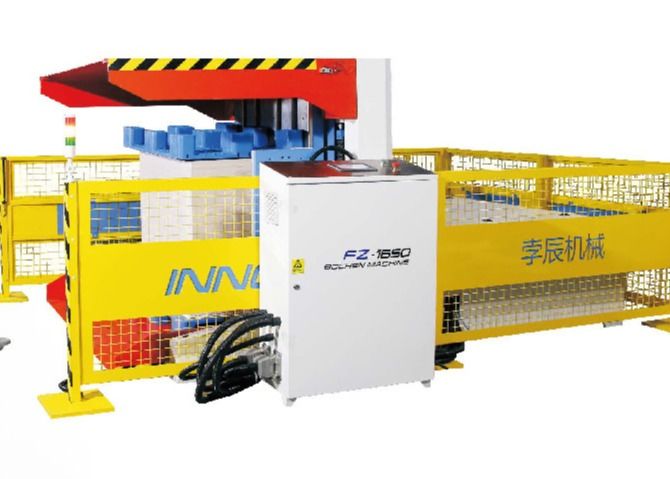

1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW

1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW
1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW
1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW 1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW

Large Image :  1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW

Product Details:
Place of Origin: China
Brand Name: Innovo B&C
Certification: CE
Model Number: PT1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden boxes
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month

1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW

Description
Max Paper Size: 1200*1700mm Min Paper Size: 500*600mm
Paper Pile Height: 850-1600mm Machine Power: 14KW
Voltage: 380V Machine Weight: 6500KG
High Light:

1700mm paper pile turner

,

1200mm paper pile turner

,

14KW pile turner

Paper Pile Turner Turning Machine Paper Aligning Jogging


Machine brief introduction:
This machine is mainly used in printing and packaging industry, for pile turning, aligning, dust removal, etc. It is a necessary equipment to improve the work efficiency and printing quality.


Function:

Replace the tray, align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume.



1. Operability: two operation panels make manual operation more convenient.

The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:

Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.



2. Hydraulic system: temperature control device is used to prevent the instability of hydraulic system in high temperature season and cold season.




Technical Parameter
Model PT1300 PT1450 PT1650 PT1900
Maximum paper size(mm) 800*1300 1100*1450 1200*1700 1400*1850
Minimum paper size(mm) 500*600 500*600 500*600 500*600
Power supply 3P 380V AC 50HZ
Machine weight(kg) 3500 4800 6500 8000
Max. weight of paper pile(kg) 1000 1400 2500 3000
Paper pile height(mm) 800-1600 850-1600 850-1600 900-1600
Total machine power(kw) 10 12 14 22




Features:

1. It can remove the impurities such as paper fibers, paper scraps and printing powders.

Before printing: this machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and reduce the defection rate about 80%. After printing: This machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as paper back pollution. It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing machine.

2. Paper separation.

By vibration and air jetting, the pile is filled with air cushion between the sheet by which the mis-feeding and double-sheeting can be avoided.

3. Aligning.

With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.

4. Turning.

For the piles of double sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work. The working environment will be much better for workers.

5. High efficiency, easy operation.

For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes. Easy operation, no need of special training for operation.




Working flow chart

1. Put the pile into platform of machine with hydraulic trolley.
1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW 0
2. Turning up, rotating and tilting.
1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW 1

3. Switch on the air jetting and vibration to remove duct(paper fiber, paper scraps)separate the sheets, aligning and turning paper pile.

1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW 2


4. The pile turner will come back to its original position, turn down. The pile can be take out by the hydraulic trolley.

1200x1700mm Paper Pile Turner Paper Aligning Jogging High Speed 14KW 3
