38KW 380V Automatic Flute Laminating Machine With Stacker

38KW 380V Automatic Flute Laminating Machine With Stacker
38KW 380V Automatic Flute Laminating Machine With Stacker
38KW 380V Automatic Flute Laminating Machine With Stacker 38KW 380V Automatic Flute Laminating Machine With Stacker 38KW 380V Automatic Flute Laminating Machine With Stacker 38KW 380V Automatic Flute Laminating Machine With Stacker 38KW 380V Automatic Flute Laminating Machine With Stacker

Large Image :  38KW 380V Automatic Flute Laminating Machine With Stacker

Product Details:
Place of Origin: China
Brand Name: innovo
Model Number: ZGFT1700
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1
Packaging Details: Wooden Package
Delivery Time: 30
Supply Ability: 20

38KW 380V Automatic Flute Laminating Machine With Stacker

Description
Production Speed: 160m/Min Product Warranty: 1 Year
Product Type: Automatic Carton Making Machine Product Max Paper: 1700*1700mm
Min Paper: 360*400mm Top Sheet Thickness: 150-800g/㎡
Total Power: 38kw Specification: 22700*2400*2850mm
High Light:

380V automatic flute laminating machine

,

38KW automatic flute laminating machine

,

160m/Min corrugated laminating machine

Series Automatic Flute Laminator Machine with stacker ZGFT1700 38KW 380v

Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

Parameters

Model ZGFT1500 ZGFT1700 ZGFT1900 ZGFT2200
Max size 1500*15000mm 1700*1700mm 1900*1900mm 2200*2100mm
Min size 360*380mm 380*400mm 450*450mm 500*500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm

300gsm-10mm

300gsm-10mm 300gsm-10mm

Max speed 10m/min 160m/min 160m/min 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm




applicable materials:
Paste paper --- 120 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.

Performance characteristics:

A .Cardboard laminate with corrugated or cardboard laminate with cardboard.

B. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

C. The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.

D. The multifunctional rack of the bottom paper are suitable for curved corrugated.

E. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.

F. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

G. One -click adjustment of the whole machine (just enter the paper size).

H. Automatic paper collection and manual paper collection can be converted at any time.

I. Video monitoring (optional).



38KW 380V Automatic Flute Laminating Machine With Stacker 4

BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING

38KW 380V Automatic Flute Laminating Machine With Stacker 5

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.

2.TOP SHEET FEEDING MECHANISM

38KW 380V Automatic Flute Laminating Machine With Stacker 6

38KW 380V Automatic Flute Laminating Machine With Stacker 7

Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.


3.ELECTRICAL SYSTEM

38KW 380V Automatic Flute Laminating Machine With Stacker 8

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

4.PRE-STACK PART

38KW 380V Automatic Flute Laminating Machine With Stacker 9

Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.

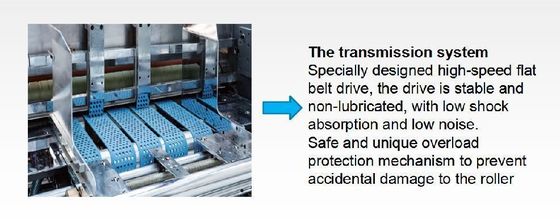

5.Transmission System

38KW 380V Automatic Flute Laminating Machine With Stacker 1038KW 380V Automatic Flute Laminating Machine With Stacker 11

Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.



6. Left-right positioning system

38KW 380V Automatic Flute Laminating Machine With Stacker 12

The right and left are accurately positioned with synchronous side stoppers, the bottom paper and top paper are precisely positioned, and the bottom paper and top paper are accurately positioned with left-right positioning devices.

7.POSITIONING SYSTEM & GLUE ROLLER

38KW 380V Automatic Flute Laminating Machine With Stacker 13

The use of multiple sets of photoelectric sensor at bottom sheets relative position,control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.Stainless steel roller, never rust, after narrowly grinding,guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

8. TOUCH SCREEN OPERATION SYSTEM

38KW 380V Automatic Flute Laminating Machine With Stacker 14

It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot.

9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)

38KW 380V Automatic Flute Laminating Machine With Stacker 15

This system is for option, more suitable for large size and thick bottom sheets.
10. SHAFTLESS SERVO FEEDER(OPTIONAL)

38KW 380V Automatic Flute Laminating Machine With Stacker 16

This system is for option, more suitable for long size top sheets.
11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)

38KW 380V Automatic Flute Laminating Machine With Stacker 17

This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.
12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)

38KW 380V Automatic Flute Laminating Machine With Stacker 18

Lubricate the bearing regularly to prolong the service life of the bearing

13.VIDEO MONITORING(OPTIONAL)
38KW 380V Automatic Flute Laminating Machine With Stacker 19

LAYOUT FOR ZGFMS-1450
38KW 380V Automatic Flute Laminating Machine With Stacker 20

Some parts list
38KW 380V Automatic Flute Laminating Machine With Stacker 21
Serial Part Country Brand
1 main motor Germany Siemens
2 touch screen Taiwan WEINVIEW
3 servo motor Japan Yaskawa
4 Linear guide slide and guide rail Taiwan HIWIN
5 Paper speed reducer Germany Siemens
6 Solenoid reversing Japan SMC
7 Press front and rear motor Taiwan Shanteng
8 Press motor Germany Siemens
9 Main engine width modulation motor Taiwan CPG
10 Feeding width motor Taiwan CPG
11 Feeding motor Taiwan Lide
12 Vacuum pressure pump Germany Becker
13 Chain Japan TSUBAKI
14 Relay Japan Omron
15 optoelectronic switch Taiwan FOTEK
16 solid-state relay Taiwan FOTEK
17 Promixity switches Japan Omron
18 water level relay Taiwan FOTEK
19 Contactor France Schneider
20 PLC Germany Siemens
21 Servo drivers Japan Yaskawa
22 Frequency converter Japan Yaskawa
23 Potentiometer Japan TOCOS
24 Encoder Japan Omron
25 Button France Schneider
26 Brake resistor Taiwan TAYEE
27 Motion controller America Parker
28 Solid-state relay Taiwan FOTEK
29 Air switch France Schneider
30 Thermorelay France Schneider
31 DC power system Taiwan Mingwei

Automatic flip flop pallet stacker

38KW 380V Automatic Flute Laminating Machine With Stacker 22



Machine transport and packing

38KW 380V Automatic Flute Laminating Machine With Stacker 23
