|Warranty:||1 Yea||Certification:||ISO9001, ISO, CE|
|Driven Type::||Electric||After-Sales Service Provided:||Online Support & Free Parts|
|Type:||Automatic Carton Making Machine||Automatic Grade:||Automatic|
|Customization:||Customized Request||Maximum Paper:||1500*1500mm|
|Working Speed:||160m/Min||Minimum Paper:||360*380mm|
|Top Sheet Thickness:||150-800g||Total Power:||33kw|
|Bottom Sheet Thickness:||Paper Thickness ≤10mm||Accuracy:||1mm|
High Speed automatic flute laminating machine,
33KW automatic flute laminating machine,
160m/Min flute laminator machine

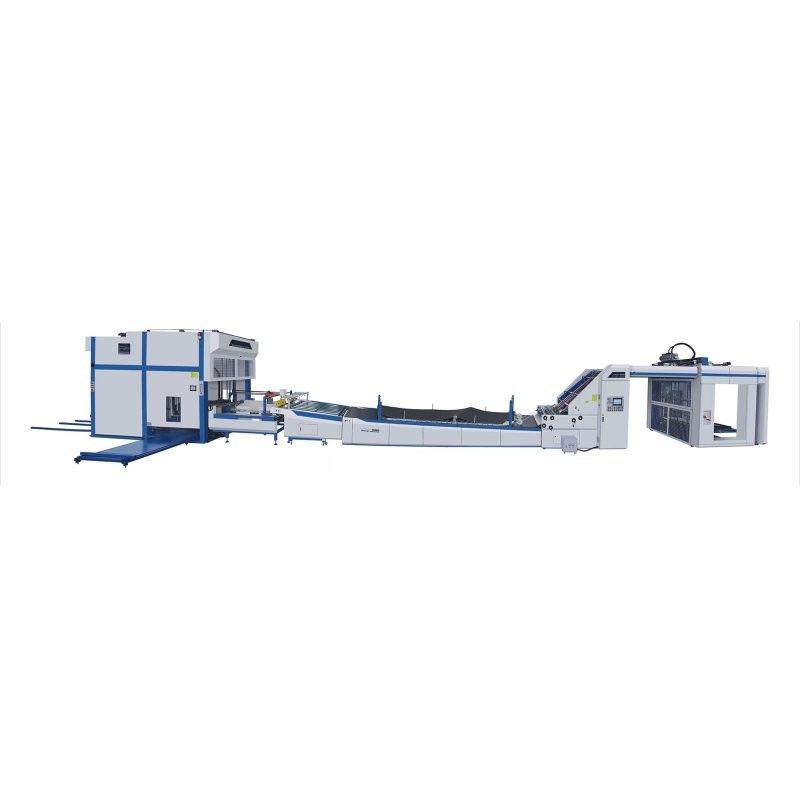

Series Automatic High Speed Flute Laminator Machine and stacker ZGFMS 33KW
A .Performance characteristics
B. Cardboard laminate with corrugated or cardboard laminate with cardboard.
C. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
D.The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
E. The multifunctional rack of the bottom paper are suitable for curved corrugated.
F. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.
G. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
H.One -click adjustment of the whole machine (just enter the paper size).
I. Automatic paper collection and manual paper collection can be converted at any time.
J.Video monitoring (optional).
A. Upper Paper Feeder: It can send stacks of 120-800gsm paper from above.
B. Bottom feed: It can send 0.5~10mm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.
1.4 applicable materials:
Paste paper --- 120 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.
Computerized high-speed fitting, up to 150m/min.
Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.
Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker
Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.
Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling
1. BOTTOM PAPER FEEDING
Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
2.TOP SHEET FEEDING MECHANISM
Both paper lifting and feeding nozzle of high speed auto dedicated feedr can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump. Ensure top feeding paper run fast and smoothly.
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
Pre-pile system with preset function can be set as paper size through touch screen and oriented automatically to reduce set-up time efficiently.
Gates synchronical belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.
6. Left-right positioning system
The right and left are accurately positioned with synchronous side stoppers, the bottom paper and top paper are precisely positioned, and the bottom paper and top paper are accurately positioned with left-right positioning devices.
7.POSITIONING SYSTEM & GLUE ROLLER
The use of multiple sets of photoelectric sensor at bottom sheets relative position,control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.Stainless steel roller, never rust, after narrowly grinding,guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.
8. TOUCH SCREEN OPERATION SYSTEM
It adopts the centralized control of the touch screen, realizes the man-machine dialogue with the high-resolution man-machine interface, and realizes the real-time dynamic monitoring of operation and fault, making it more convenient to adjust and troubleshoot.
9. LEADING EDGE FEEDING SYSTEM(OPTIONOL)
This system is for option, more suitable for large size and thick bottom sheets.
10. SHAFTLESS SERVO FEEDER(OPTIONAL)
This system is for option, more suitable for long size top sheets.
11. BIG SUCTION SYSTEM FOR BOTTOM PAPER(OPTIONAL)
This system is for option, if your products with cardboard, corrugated board, and 3 or 5 layers. you can choose this system.
12. AUTOMATIC LUBRICATION SYSTEM (OPTIONAL)
Lubricate the bearing regularly to prolong the service life of the bearing
|4||Linear guide slide and guide rail||Taiwan||HIWIN|
|5||Paper speed reducer||Germany||Siemens|
|7||Press front and rear motor||Taiwan||Shanteng|
|9||Main engine width modulation motor||Taiwan||CPG|
|10||Feeding width motor||Taiwan||CPG|
|12||Vacuum pressure pump||Germany||Becker|
|18||water level relay||Taiwan||FOTEK|
|31||DC power system||Taiwan||Mingwei|
Automatic flip flop pallet stacker
Machine transport and packing
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
