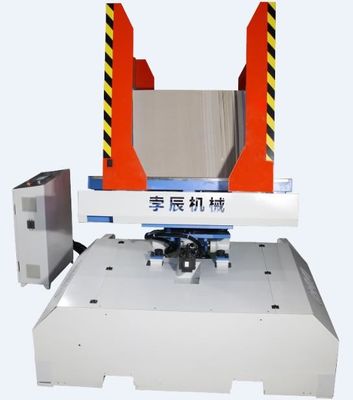

Large Image :  Aligning Pile Turner Machine Adjusting Loosing 1300mm

Product Details:
Place of Origin: China
Brand Name: INNOVO
Model Number: PT1300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1/set
Delivery Time: 25
Supply Ability: 20

Aligning Pile Turner Machine Adjusting Loosing 1300mm

Description
Type: Turner Pile Specification: 3500kg 2370*2090*1890mm
After-Sales Service Provided: Engineers Available To Service Machinery Overseas Transport Package: Wrapped Film Packaging
Production Capacity: 20 Warranty: 1Year
Usage:: Offset Printing, Letterpress Printing, Flexo Printing, Digital Printing Driven Type: Electric
Automatic Grade:: Automatic Condition: NEW
Customization:: Customized Request
High Light:

Aligning Pile Turner Machine

,

Pile Turner Machine Adjusting

,

Loosing load turner

Pile Turner for Paper Turning Stacker Machine Aligning/Adjusting/Loosing PT1300

Function:
Replace the tray, align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume.
Technical Paramete
Model PT1300 PT1450 PT1650 PT1900
Maximum paper size(mm) 800*1300 1100*1450 1200*1700 1400*850
Minimum paper size(mm) 500*600 500*600 500*600 500*600
Power supply 3P 380V AC 50HZ
Machine weight(kg) 3500 4800 6500 8000
Max. weight of paper pile(kg) 1000 1400 2500 3000
Paper pile height(mm) 800-1600 850-1600 850-1600 900-1600
Total machine power(kw) 10 12 14 22
Machine size(mm) 10600*2400*2750 11400*2600*2950 1300*2700*2950 13800*2900*2950



1. Operability: two operation panels make manual operation more convenient.
The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:
Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.

Aligning Pile Turner Machine Adjusting Loosing 1300mm 0


Aligning Pile Turner Machine Adjusting Loosing 1300mm 1
2. Hydraulic system: temperature control device is used to prevent the instability of hydraulic system in high temperature season and cold season.

Aligning Pile Turner Machine Adjusting Loosing 1300mm 2

Aligning Pile Turner Machine Adjusting Loosing 1300mm 3
Performance characteristics

1. Flip the paper pile to replace the tray
Flip the original tray onto the top of the paper pile through the flip function, which is convenient to manually take out the original tray and replace it with other trays. Then flip the paper pile back to its original position with the flip function (especially when the paper pile is purchased and the tray is made of wood).

Aligning Pile Turner Machine Adjusting Loosing 1300mm 4Aligning Pile Turner Machine Adjusting Loosing 1300mm 5Aligning Pile Turner Machine Adjusting Loosing 1300mm 6Aligning Pile Turner Machine Adjusting Loosing 1300mm 7Aligning Pile Turner Machine Adjusting Loosing 1300mm 8Aligning Pile Turner Machine Adjusting Loosing 1300mm 9
2. Align the paper, Remove dust from paper, loosen the paper, dry, Neutralize odors, take out the damaged paper, center, and adjust the temperature, humidity and air volume, replace the tray.
Align: The paper is aligned by blowing (adjustable air volume) and vibrating (adjustable vibration amplitude), which makes the paper loose and removes dust and impurities in the paper pile (prolonging the service life of the printer and improving the printing clarity), and neutralizes the paper smell (playing an important role in food packaging) by adjusting the air volume. The wind makes the ink in the paper pile dry quickly and can adjust the temperature and humidity, to prevent the quality and efficiency from being affected by the warpage of the paper in the subsequent production and processing process. In the process of paper aligning, the damaged paper in the paper pile can be pulled out.

Aligning Pile Turner Machine Adjusting Loosing 1300mm 10
3. The machine can efficiently align the paper pile (about 3 minutes).

Aligning Pile Turner Machine Adjusting Loosing 1300mm 11
4. Automatic paper pile feeding and output function (optional).

Aligning Pile Turner Machine Adjusting Loosing 1300mm 12





Machine transport and packing

Aligning Pile Turner Machine Adjusting Loosing 1300mm 13
