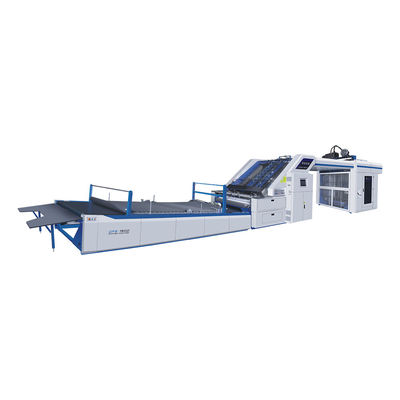

High Speed Full Automatic Flute Laminator Machine 200m/Min for Corrugated Cardboard with 220/380V Voltage

Lead edge feeding system with no feeding pressure structure prevents damage to corrugated material and enhances pressure resistance. Unidirectional bearing wheels reduce rubber wheel wear. Wide rubber wheels prevent deformation of E, F, and G corrugated types and can handle cardboard or gray board over 400gsm.

Equipped with high-speed feeder and Becker vacuum pump. Front and rear feeder sections are servo motor controlled for automatic positioning after paper size input. Features top sheet aligner system for high accuracy with choice of overlap sheet or separation sheet feeding modes.

Siemens electrical system ensures machine stability, high efficiency, and low failure rates. Human-machine interface combined with PLC displays all operational information. Order memory function enables quick retrieval and transfer of previous orders.

Pre-stack paper handling enables continuous operation without stopping, improving overall efficiency. Motor-controlled pre-stacker width automatically positions paper size. Dual-use lifting platform accommodates both pre-stacker paper feeding and direct paper stack loading, with adjustable platform for varying paper stack conditions.

Equipped with sensors and servo motors for independent compensation actions on top sheets to ensure high accuracy. Large stainless steel anilox roller (160mm diameter) provides stable, high-efficiency operation with even coating and glue savings. Digital design enables automatic glue volume adjustment and automatic gluing roller gap adjustment based on bottom sheet thickness.

Regular automatic bearing lubrication extends service life and reduces maintenance costs. System ensures optimal performance even under heavy-duty working conditions.
