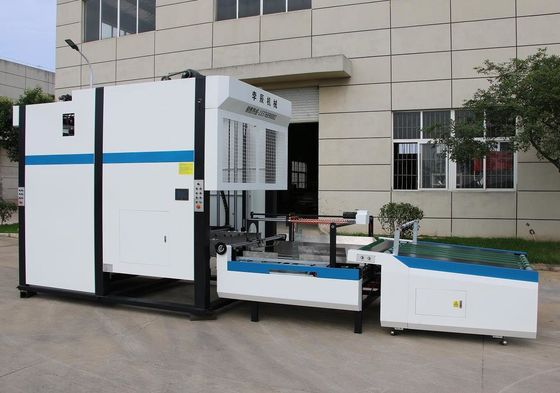

High Speed Auto Stacker Machine

High Speed Auto Stacker Machine
High Speed Auto Stacker Machine
High Speed Auto Stacker Machine High Speed Auto Stacker Machine High Speed Auto Stacker Machine

Large Image :  High Speed Auto Stacker Machine

Product Details:
Place of Origin: Anhui
Brand Name: Innovo Bochen
Certification: CE
Model Number: ZS-1450/1650/1900/2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 24000-35000USD
Packaging Details: Vacuum bag
Delivery Time: 15-30 Days
Supply Ability: 50 Sets per month

High Speed Auto Stacker Machine

Description
Model: ZS-1650 Use: Pallet Stacking
Max Pallet Size: 1650*1650mm Min Pallet Size: 420*500mm
Pallet Stacking Speed: Max 12000pcs Per Hour Pallet Stacking Height: 1700mm
High Light:

High Speed Auto Stacker Machine

,

1650mm Auto Stacker Machine

,

CE automatic stacker machine

              Auto Flip flop pallet stacker machine for corrugated cardboard

Machine details:



The stacking machine is an accessory product of the flute laminating machine, which comprises a slow paper table, a stack of paper tables, a turning table and a paper receiving table. Wherein, the paper is connected to the crepe paper unit through the slow feeding table, and the paper is stacked into a paper pile and then sent into the turning table, and the paper pile turning mechanism in the turning table is used to turn the paper pile once and turn it to the turning table.



The top part is fed into the paper separation mechanism by the belt conveying mechanism and then enters the top of the receiving table. After the whole paper is finished, the paper is dropped onto the pallet of the receiving table, thereby achieving full automatic paper counting, paper turning and paper stacking. It has the advantages of flattening and affixing paper and greatly reducing manpower requirements and effectively improving the efficiency of paper delivery, reducing the manual delivery intensity.



Parameters:



Model ZS-1450 ZS-1650
Max size 1500*1500mm 1700*1700mm
Min size 420*450mm 420*450mm
Applicable paper 150-800g/m2 150-800g/m2
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12000pcs/hour 12000pcs/hour
Power 8Kw 10kw





This fully automatic turning and stacking machine is an accessory paper product machine, which comprises a slow dilivery table, a stack of paper table, a turning talbe and a delivery table, which are sequentially connected, where in the slow feeding table and the paper feeding unit are after the paper is stacked into a stack of paper and fed into turning table. The paper stack is turned over once and then turned to the top of the turning table by the belt turning mechanism in the turning table. And then fed by the belt conveying mechanism. After the paper separation mechanism enters the top of the receiving table. Thereby achieving full automatic paper counting, paper turning and paper stacking. Paper and greatly reduce the need for manpower and effectively improve the effciency of delivery. Reduce the manual delivery intensity.



The new flip-receiver adopts a newly designed delivery bin, which completely solves the indentation caused by the collision of paper and metal in the production process of the old flip type delivery machine.



A new belt conveying mechanism was added to replace the old paper feeding mechanism, which solved the crease caused by the paepr being overweght and pushing the paper.



Machine parts picture



High Speed Auto Stacker Machine 0





Optional



High Speed Auto Stacker Machine 1



This options is exit roller, pallet can exit from the roller automatically, it can save labour, faster speed.





Machine picture

High Speed Auto Stacker Machine 2
