DS 1450/1650 Automatic double pile flip flop stacker
Machine details:
The product is stacked in the center of pallet which is more stable. It is convenient for transfer and reduces the risk of tipping.
Intelligent double-pile stacking of single pallet to reduce space occupation.
Put the pallet manually, feed out paper stack manually.
Matching 12,000 pcs/h speed flute laminating machine.
Flip mode can be changed to prevent the paper from being curved.
None stop collection function to improve production efficiency.
Reduce labor and reduce labor intensity.
Paper can be patted neatly and stacked into pile.
Machine can match with different manufacturers' flute laminating machine.
Paper can come out from back or side.
One -click adjustment (just enter the paper size).
Video monitoring (optional).
| Model |
DS1450 |
DS1650 |
DS1900 |
DS2200 |
| Max. paper size |
1500*1500mm |
1700*1700mm |
1900*1900mm |
2200*2200mm |
| Min. paper size |
450*550mm |
450*550mm |
450*550mm |
450*550mm |
| Speed |
If A,B,C flute, the speed can be 8000-10000pcs
If E flute, the speed can be 12000pcs
If BE flute, the speed can be 5000-7000pcs
If BC flute, the speed can be around 5000pcs.
|
This fully automatic turning and stacking machine is an accessory paper product machine, which comprises a slow dilivery table, a stack of paper table, a turning talbe and a delivery table, which are sequentially connected, where in the slow feeding table and the paper feeding unit are after the paper is stacked into a stack of paper and fed into turning table. The paper stack is turned over once and then turned to the top of the turning table by the belt turning mechanism in the turning table. And then fed by the belt conveying mechanism. After the paper separation mechanism enters the top of the receiving table. Thereby achieving full automatic paper counting, paper turning and paper stacking. Paper and greatly reduce the need for manpower and effectively improve the effciency of delivery. Reduce the manual delivery intensity.
The new flip-receiver adopts a newly designed delivery bin, which completely solves the indentation caused by the collision of paper and metal in the production process of the old flip type delivery machine.
A new belt conveying mechanism was added to replace the old paper feeding mechanism, which solved the crease caused by the paepr being overweght and pushing the paper.

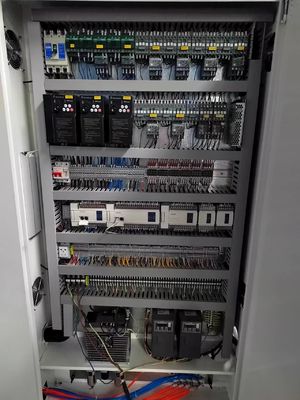

Machine parts picture

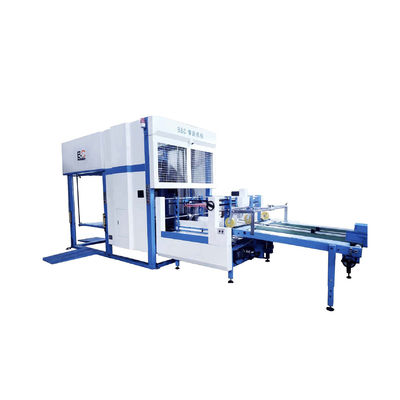

Machine picture
