Product Details:
|
| Max Paper Size: | 1500x1500mm | Min Paper Size: | 360x380mm |
|---|---|---|---|
| Max Speed: | 150m/min | Register Accuracy: | ±1.5mm |
| Top Thickness: | 120-800g | Bottom Tickness: | ≤10mm |
| High Light: | 5 Ply Flute Laminator Automatic,Servo Adjustment 5 Ply Flute Laminator,Servo Adjustment Automatic Flute Laminating Machine |
||

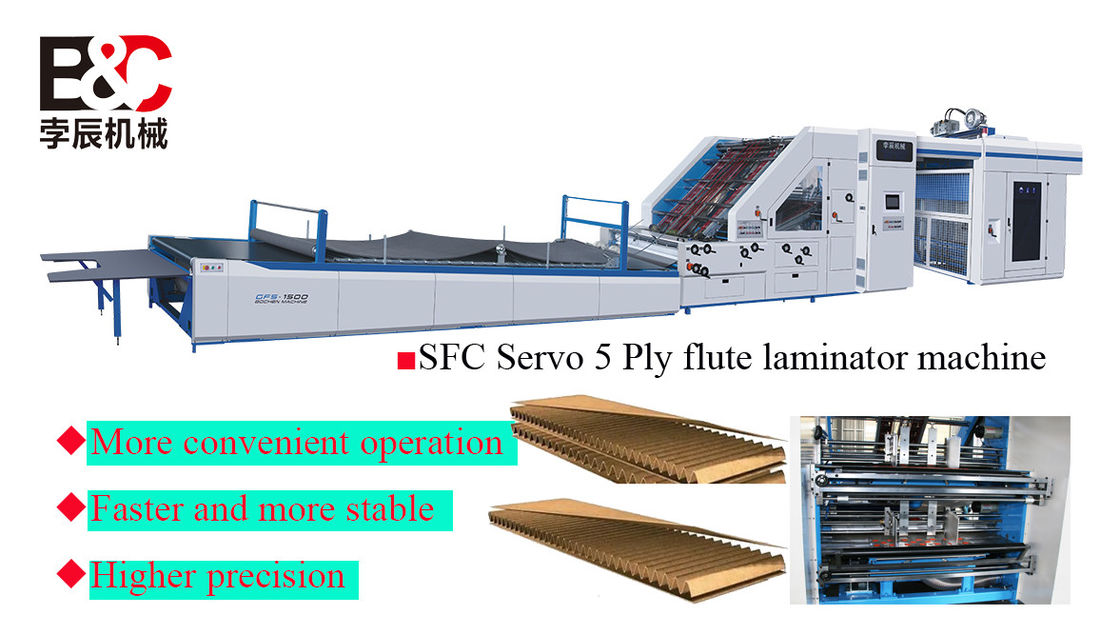

150m/min 5ply Automatic Flute Laminator Machine Servo adjustment
Performance characteristics
● This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
● The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
● Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.
● Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
● One -click adjustment of the whole machine (just enter the paper size).
Two sets lead edge feeding system, suction is greater, the stability is higher, and the cost of use is lower.
Adopts bottom suction method ensure the paper’s stability at high speed working.
Anilox roller diameter is 160mm, In the case of high -speed running, the roller speed is still very slow and does not shake the glue.
Pressure roller diameter is 150mm, Special materials on the surface, do not stick glue, free to clean.
Conveyor belt with blanket ensure the pressure is more smoothly, protect the strength of corrugated.
Machine has 7-9 servo motors, use Siemens PLC and frequency inverter.
SPECIFICATION:
| MODEL | SFC-1500 | SFC-1700 | SFC-1900 |
| Max Sheet | 1500×1500mm | 1700×1700mm | 1900×1900mm |
| Min Sheet | 360×380mm | 360×400mm | 500×500mm |
| Top Paper Thickness | 120-800g | 120-800g | 120-800g |
| Max Speed | 150m/min | 150m/min | 150m/min |
| Fitting Precision | ±1mm | ±1mm | ±1mm |
| Machine Power | 22KW | 25KW | 27KW |
| Bottom Paper Thickness |
≤10mm(A-F corrugated board) ≥300g cardboard |
≤10mm(A-F corrugated board) ≥300g cardboard |
≤10mm(A-F corrugated board) ≥300g cardboard |
BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING
Both bottom feeding part adopt lead edge feeding, the wheels use unidirectional bearing (reduce the wear of rubber wheels). The wide rubber wheels ensure that the E, F, and G corrugated does not deform.
2. TOP SHEET FEEDING MECHANISM
Equipped with high speed feeder, and together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Both paper lifting and forwarding sucker can freely adjust to ensure that whether thick or thin
paper can be delivered rapidly and smoothly.
3. ELECTRICAL SYSTEM
Mainly using Siemens electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
4. PRE-STACK PART
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
5. POSITIONING SYSTEM & GLUE ROLLER
Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
